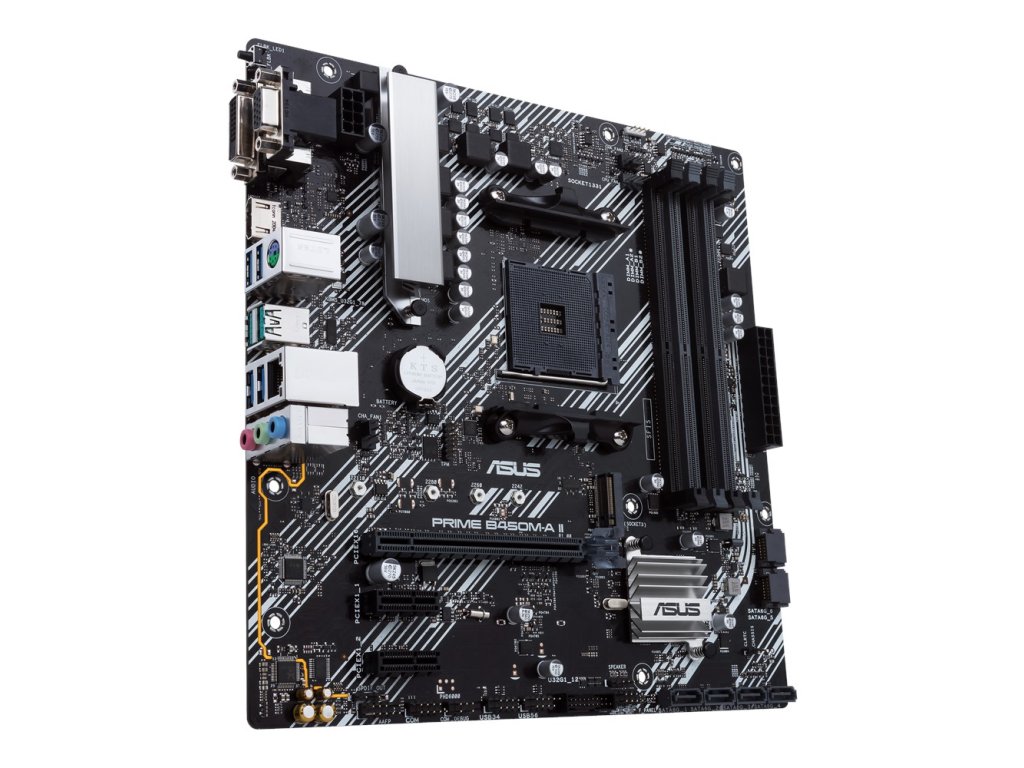

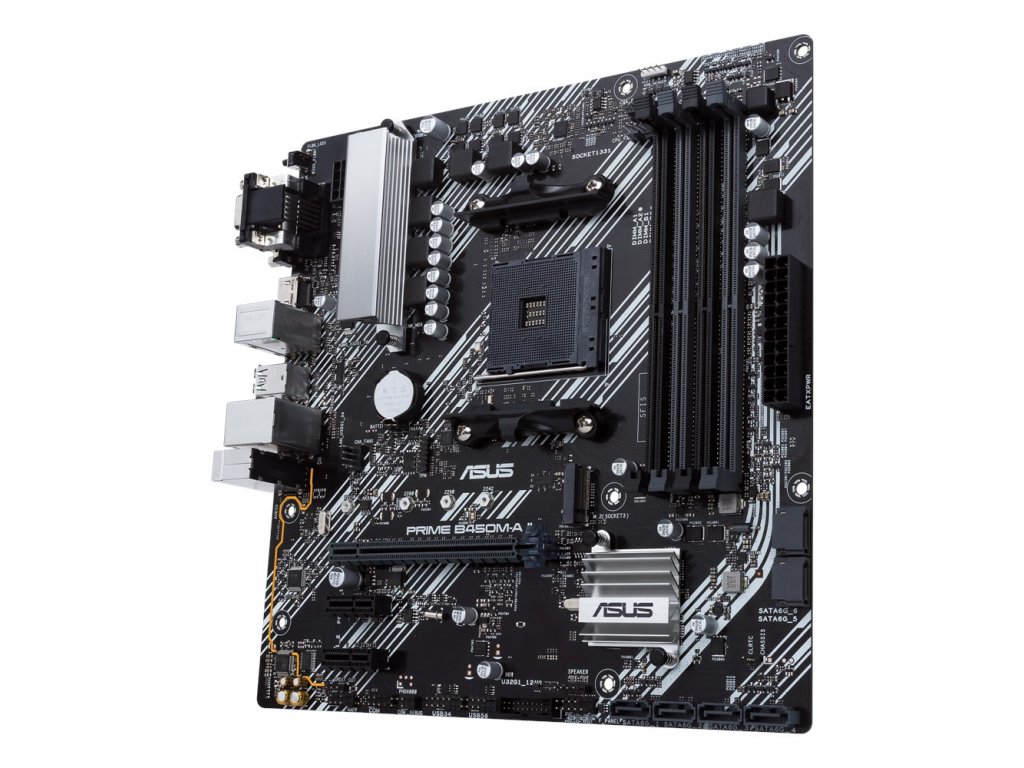

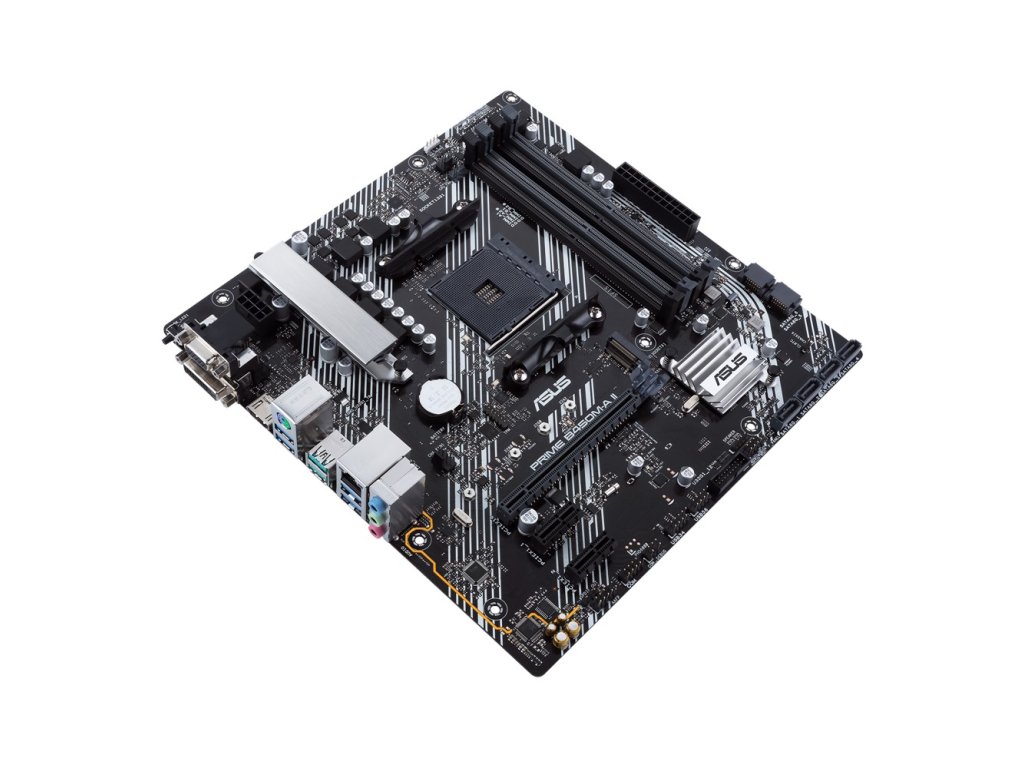

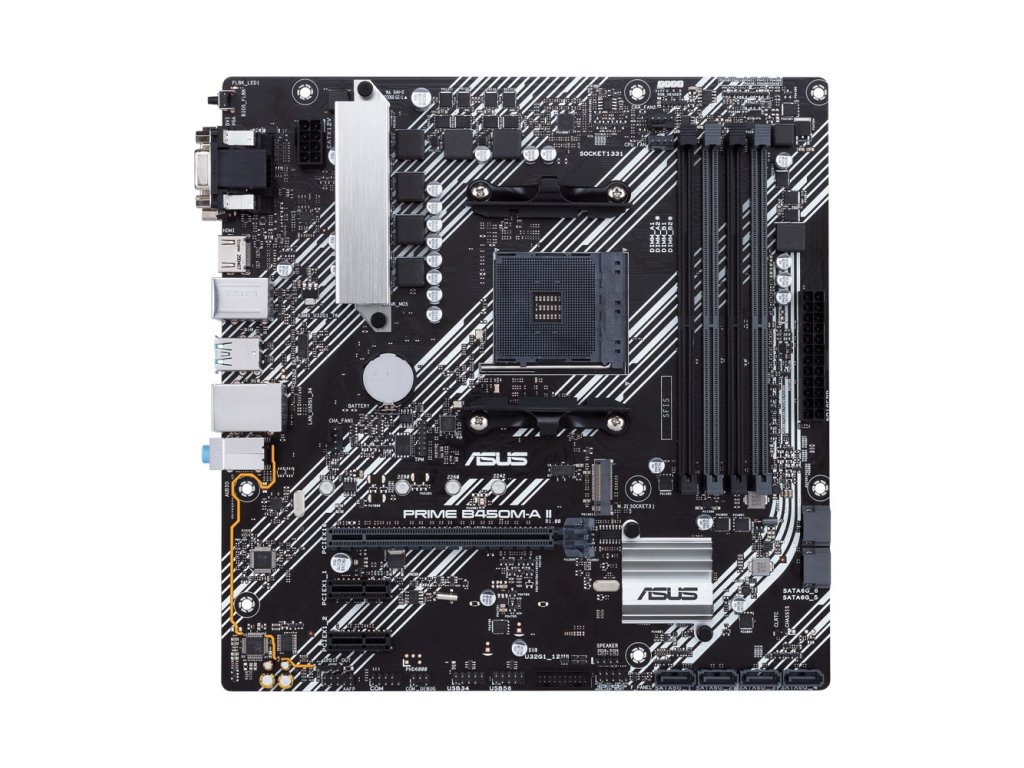

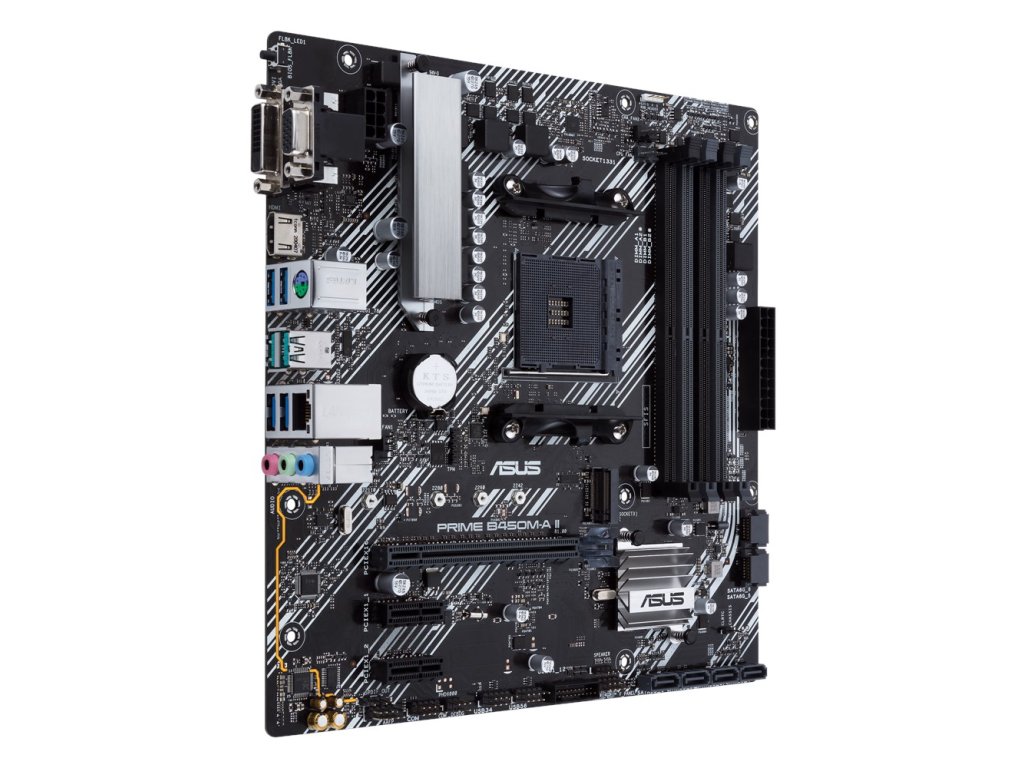

ASUS PRIME B450M-A II/AM4/mATX

Detailní popis produktu

Kód: 200701780171
P/N: 90MB15Z0-M0EAY0
EAN: 4718017924986

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)

Chipset:
AMD B450

Rozměrový formát:
mATX Form Factor (244 mm x 244 mm)

Podpora pro procesory:
3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors

Patice procesoru:
AM4

Pozice na paměti:
4x DDR4 DIMM

Podpora pro paměti:
4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory

Max.velikost operační paměti:
128 GB

Podpora pro paměti typu:
DDR4
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU

Grafické výstupy:

Integrated Graphics Processor (na základě procesorů 2. a 1. generace AMD s Radeon Grpahics)

Zvuková karta:

Realtek 7.1-Channel High Definition Audio CODEC

Síťová karta:

Realtek® RTL8111H

Rozšiřující sloty:

3rd/2nd/1st Gen AMD Ryzen™ Processors

1x PCIe 3.0 x16 (x16 mode)

2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors

1x PCIe 3.0 x16 (x8 mode)

AMD Athlon™ with Radeon™ Vega Graphics Processors

1x PCIe 3.0 x16 (x4 mode)

AMD B450 chipset

2x PCIe 2.0 x1

RAID řadič:
0, 1, 10

SATA:

6x SATA 6Gb/s ports

M.2:

1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

USB:

zadní USB porty ( celkem 6 )

2x USB 3.2 Gen 2 (up to 10Gbps) port(s)(2 x Type-A)
4x USB 3.2 Gen 1 port(s)(4 x Type-A)

přední USB porty ( celkem 6 )

2x USB 3.2 Gen 1 port(s)
4x USB 2.0 port(s)

Interní porty:

1x CPU Fan connector(s) (1 x 4 -pin)
2x Chassis Fan connector(s) (2 x 4 -pin)
1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1x SPI TPM header
1x COM port(s) connector(s)
6x SATA 6Gb/s connector(s)
1x S/PDIF out header(s)
1x 24-pin EATX Power connector(s)
1x 8-pin ATX 12V Power connector(s)
1x Front panel audio connector(s) (AAFP)
1x System panel(s)
1x Clear CMOS jumper(s)
1x COM port header
1x Speaker connector
1x RGB Header

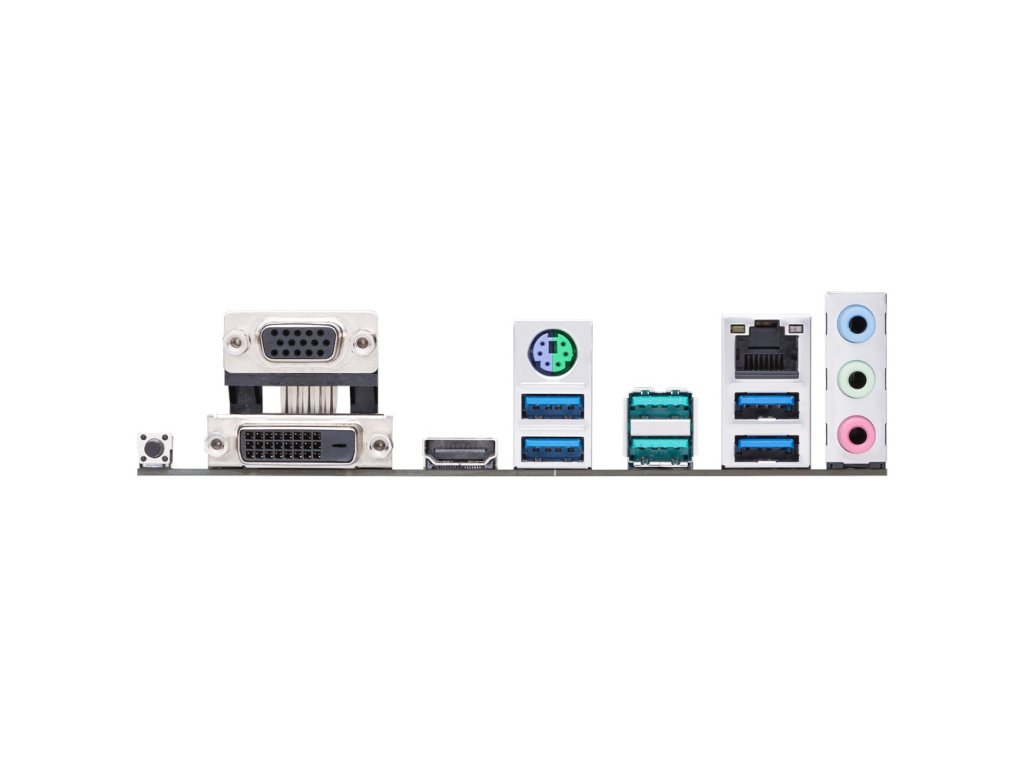

Externí porty:

1x PS/2 keyboard/mouse combo port(s)
1x DVI-D
1x D-Sub
1x HDMI
1x LAN (RJ45) port(s)
2x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
4x USB 3.2 Gen 1 (blue) Type-A
3x Audio jack(s)
1x BIOS FlashBack™ Button(s)

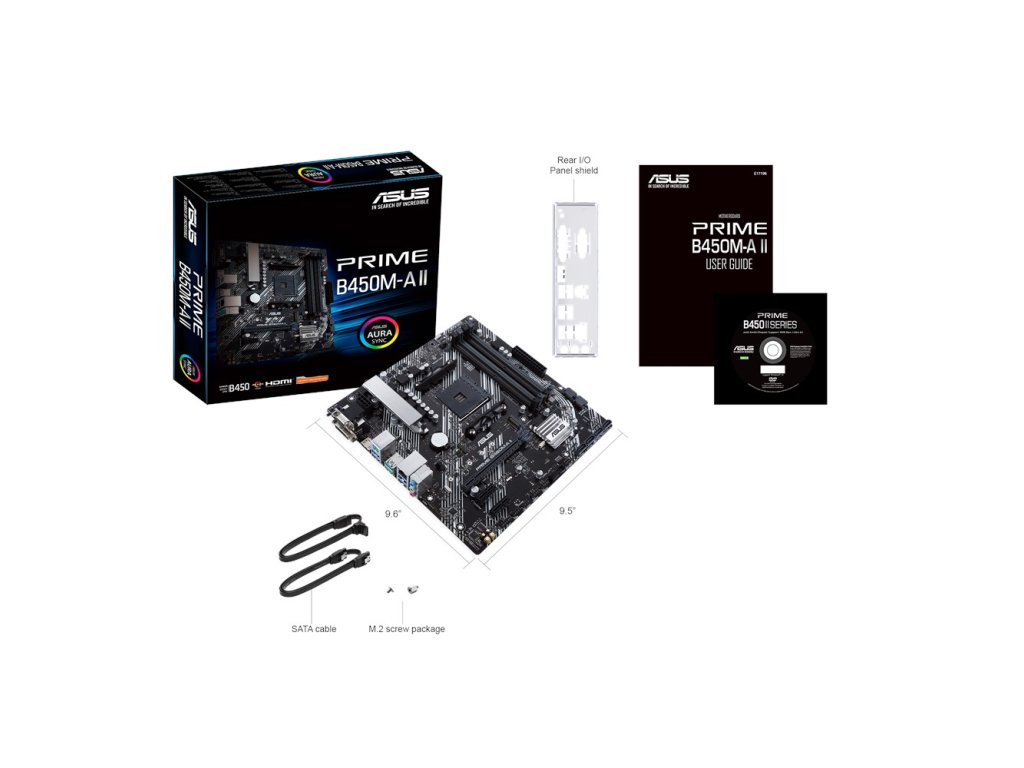

Obsah balení:

User's manual
I/O Shield
2x SATA 6Gb/s cable(s)
1x M.2 Screw Package
1x Supporting DVD

BIOS:
256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobce:
https://www.asus.com/Motherboards/PRIME-B450M-A-II https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www.asus.com/support/FAQ/1046215
