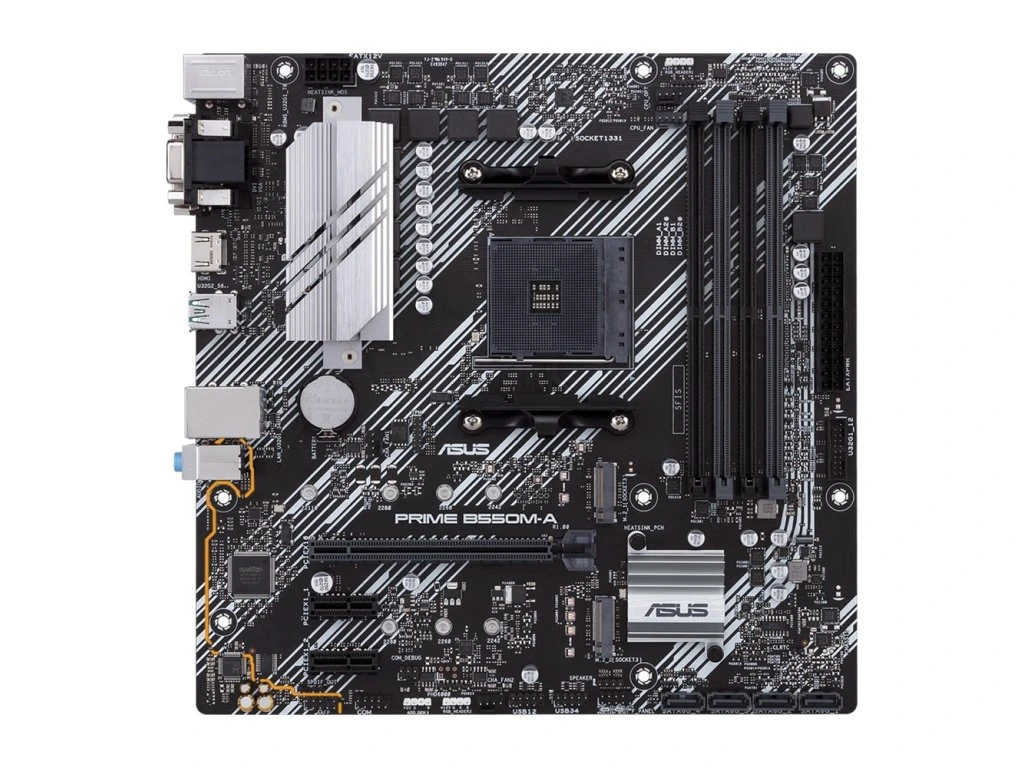

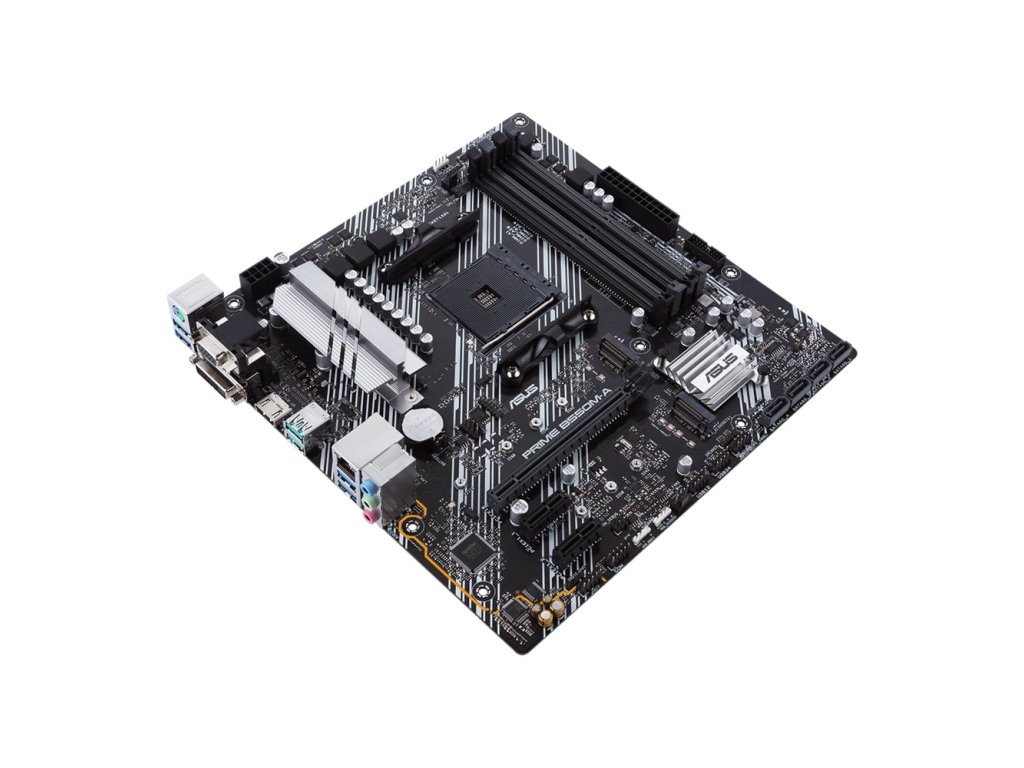

ASUS PRIME B550M-A/CSM

Detailní popis produktu

Kód: 20070177997
P/N: 90MB14I0-M0EAYC
EAN: 4718017755535

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)

Chipset:
AMD B550

Rozměrový formát:
mATX Form Factor (244 mm x 244 mm)

Podpora pro procesory:
AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

Patice procesoru:
AM4

Pozice na paměti:
4x DDR4 DIMM

Podpora pro paměti:

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors - 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
AMD Ryzen™ 4000 G-Series Desktop Processors - 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

Max.velikost operační paměti:
128 GB

Podpora pro paměti typu:
DDR4
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU

Grafická karta:
Integrated Graphics Processor (na základě procesoru)
1x D-Sub
1x DVI-D
1x HDMI 2.1(4K@60HZ)

Zvuková karta:

Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC

Síťová karta:

Realtek RTL8111H 1Gb Ethernet

Rozšiřující sloty:

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

1x PCIe 4.0 x16 (x16 mode)

AMD Ryzen™ 4000 G-Series Desktop Processors

1x PCIe 3.0 x16 (x16 mode)

AMD B550 Chipset

2x PCIe 3.0 x1

RAID řadič:
0, 1, 10

SATA:

4x SATA 6Gb/s port(s)

M.2:

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :

1x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support

AMD Ryzen™ 4000 G-Series Desktop Processors :

1x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

AMD B550 Chipset

1x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

USB:

zadní USB porty ( celkem 6 )

2x USB 3.2 Gen 2 port(s)(2 x Type-A)
4x USB 3.2 Gen 1 port(s)(4 x Type-A)

přední USB porty ( celkem 6 )

2x USB 3.2 Gen 1 port(s)(2 x Type-A)
4x USB 2.0 port(s)(4 x Type-A)

Interní porty:

1x CPU Fan connector(s)
1x CPU OPT Fan connector(s)
2x Chassis Fan connector(s)
2x Aura RGB Strip Headers
1x Addressable Gen 2 header(s)
1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1x SPI TPM header
4x SATA 6Gb/s connector(s)
1x S/PDIF out header(s)
1x 24-pin EATX Power connector(s)
1x 8-pin EATX 12V Power connectors
1x Front panel audio connector(s) (AAFP)
1x Clear CMOS jumper(s)
1x System panel connector
1x COM port header
1x Speaker connector

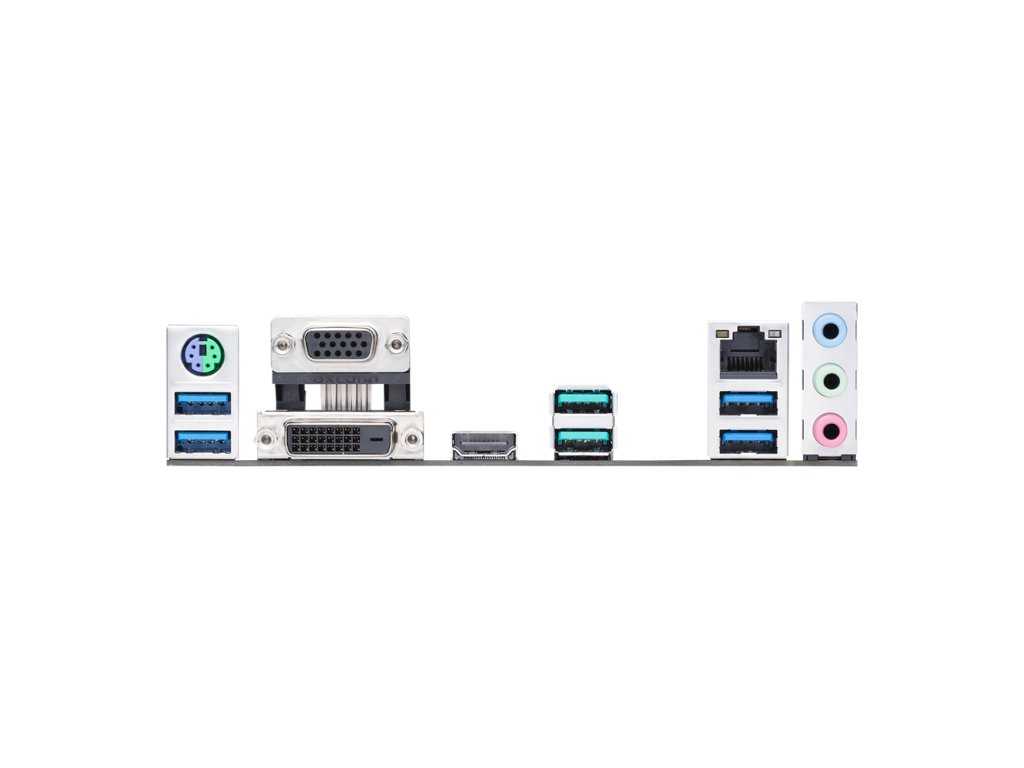

Externí porty:

1x PS/2 keyboard/mouse combo port(s)
1x DVI-D
1x D-Sub
1x HDMI
1x LAN (RJ45) port(s)
2x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
4x USB 3.2 Gen 1 (blue) Type-A
3x Audio jack(s)

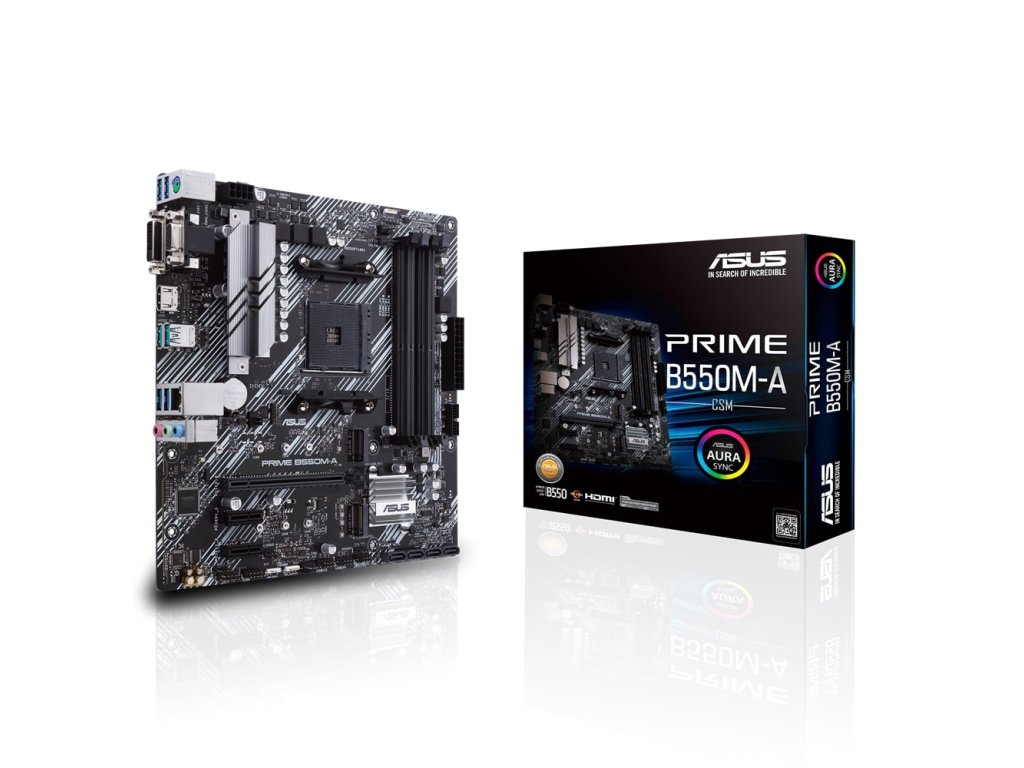

Obsah balení:

1 x ACC Express Activation Key Card
I/O Shield
2x SATA 6Gb/s cable(s)
1x Supporting DVD
User manual
1x M.2 SSD screw package(s)

BIOS:
256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobce:
