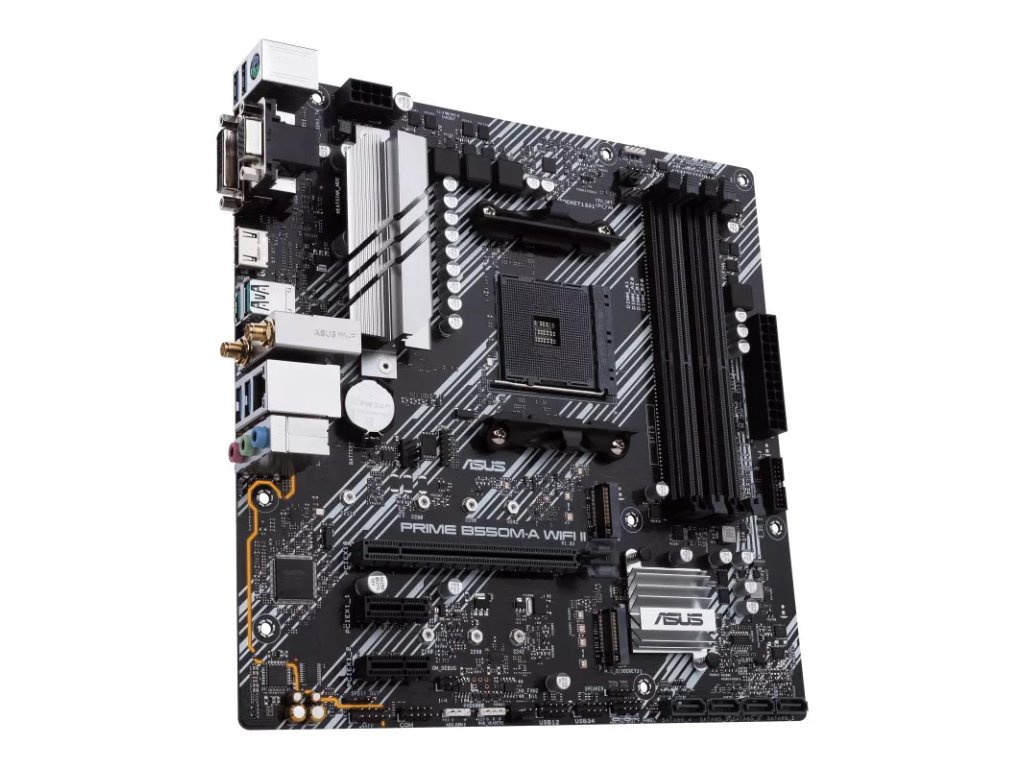

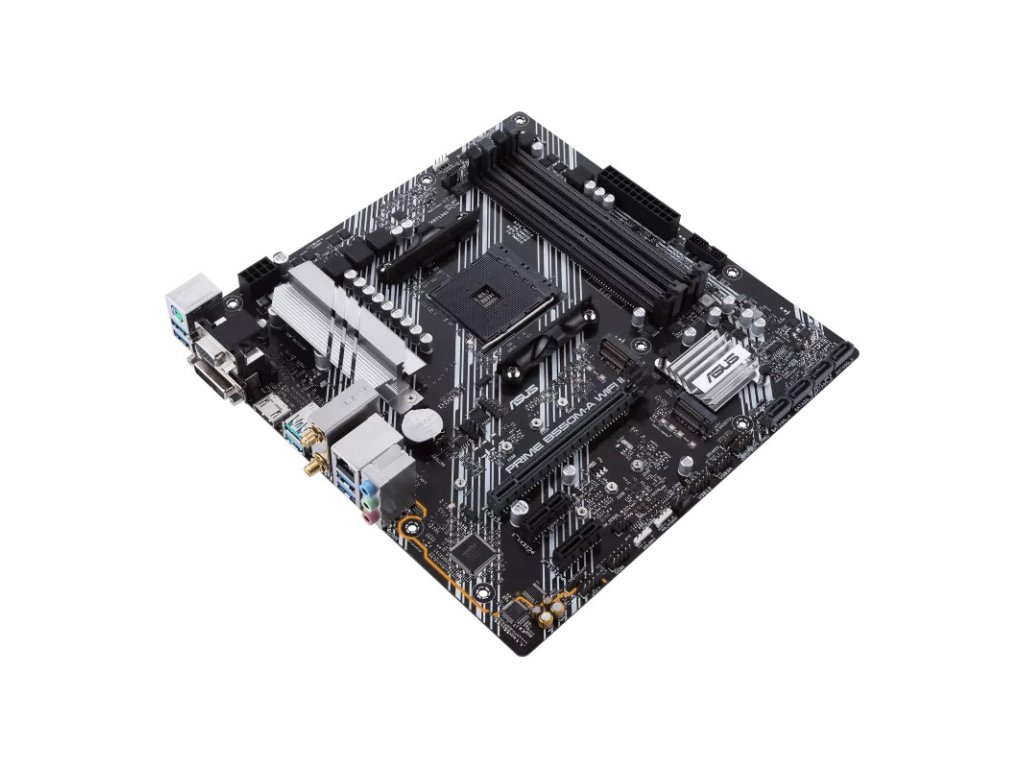

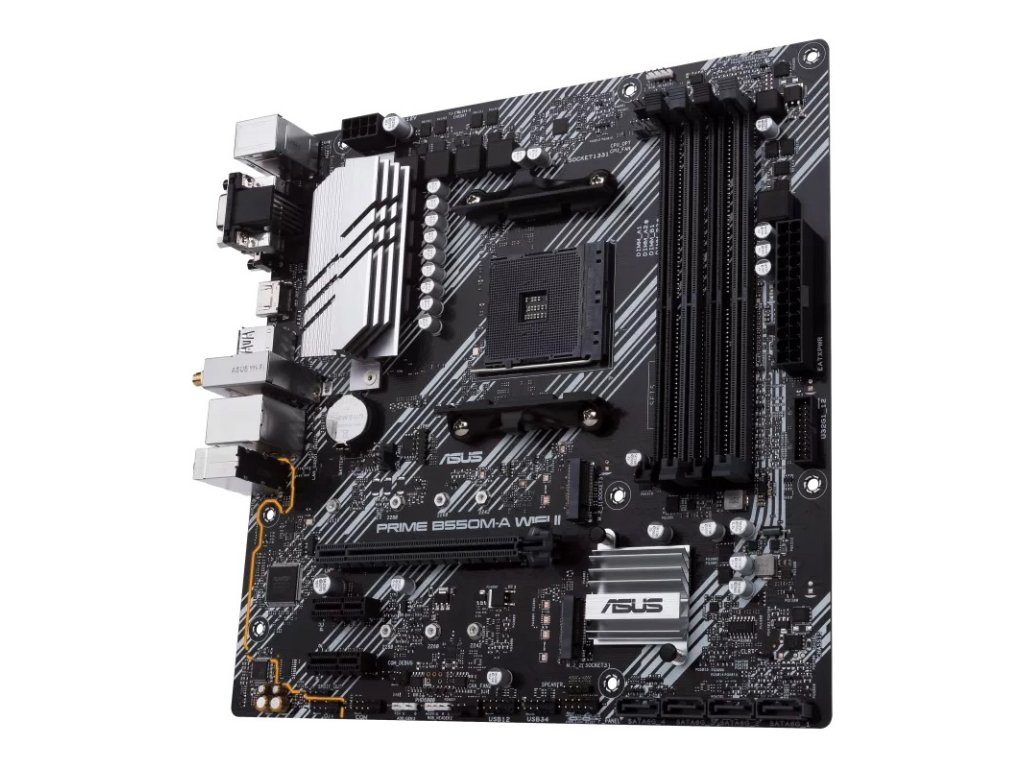

ASUS PRIME B550M-A WI-FI II/AM4/mATX

Detailní popis produktu

Kód: 20070178007
P/N: 90MB19X0-M0EAY0
EAN: 4711081309741

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)

Chipset:
AMD B550

Rozměrový formát:
micro ATX (24.4cm x 24.4cm)

Podpora pro procesory:
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Pozice na paměti:
4 x DIMM DDR4 Dual Channel Memory Architecture

Podpora pro paměti:
4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz

Max.velikost operační paměti:
128 GB

Podpora pro paměti typu:
ECC

Zvuková karta:
Realtek 7.1 Surround Sound High Definition Audio CODEC

Síťová karta:

1 x Realtek 1Gb Ethernet
Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Bluetooth 5.2

Rozšiřující sloty:

2 x PCIe 4.0 x16 slot
2 x PCIe 3.0 x1 slots

RAID řadič:
RAID 0, 1, 10

SATA:
4 x SATA 6Gb/s ports

M.2:
2 x M.2 slots

USB:

Interní:

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Externí:

2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)

Interní porty:

Fan and Cooling related

1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

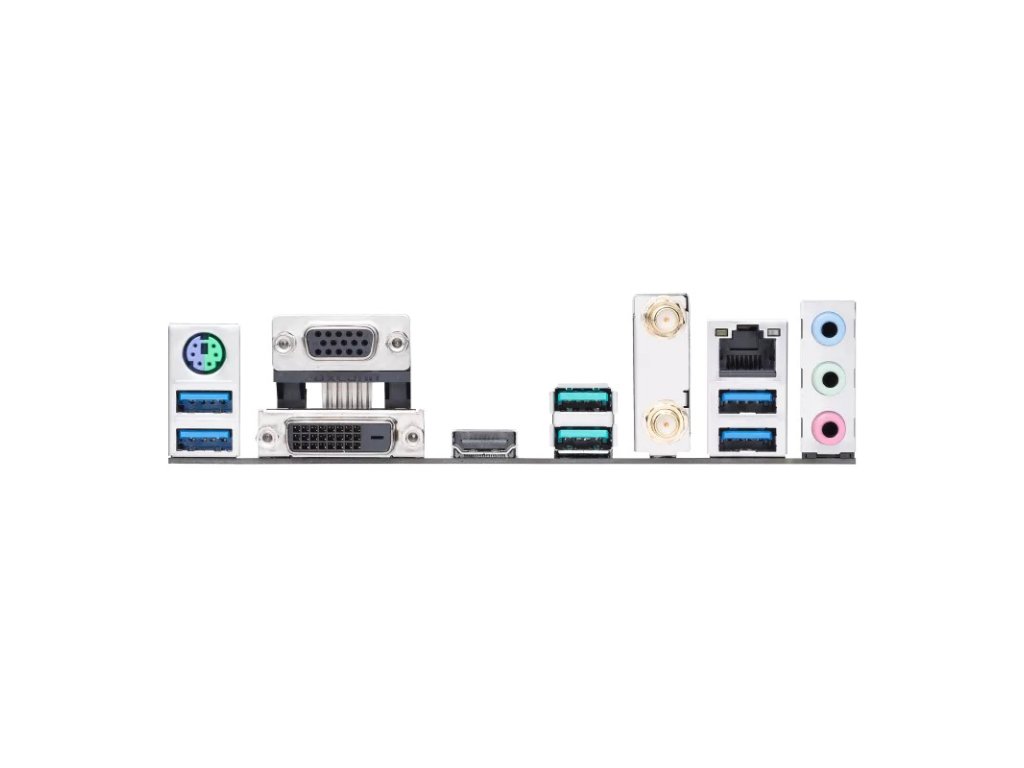

Externí porty:

2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

BIOS:
UEFI AMI BIOS, 256 Mb Flash ROM
