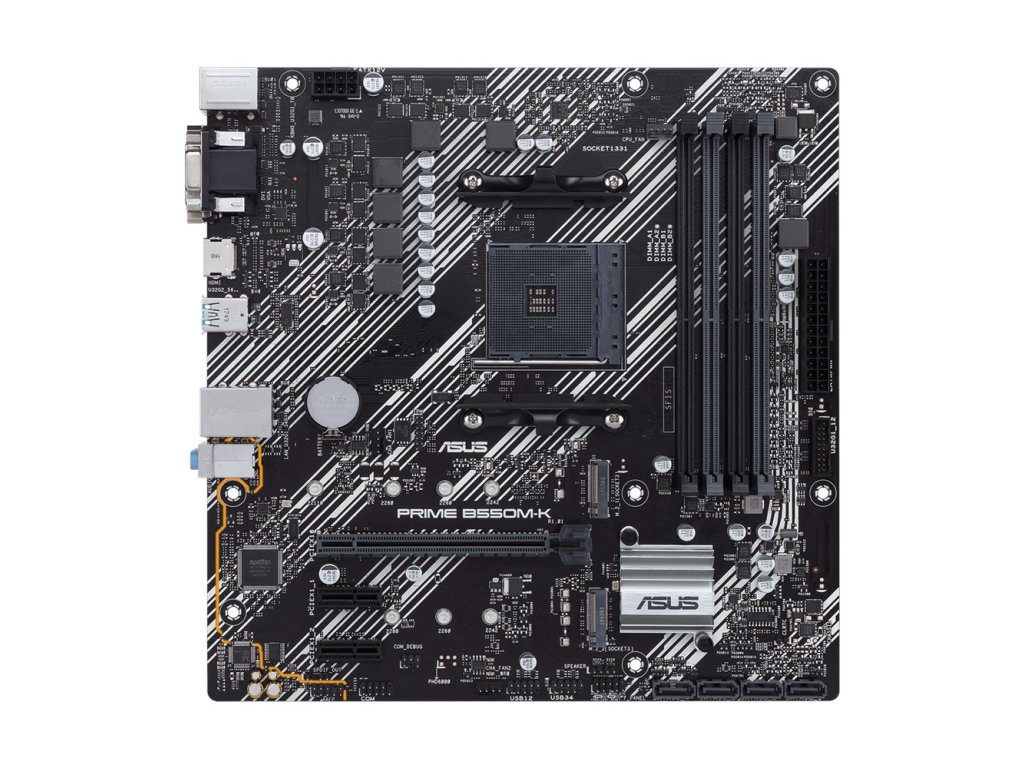

ASUS PRIME B550M-K/AM4/mATX

Detailní popis produktu

Kód: 20070178005
P/N: 90MB14V0-M0EAY0
EAN: 4718017758284

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)

Chipset:
AMD B550

Rozměrový formát:
mATX Form Factor (244 mm x 244 mm)

Podpora pro procesory:
AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors

Patice procesoru:
AM4

Pozice na paměti:
4x DDR4 DIMM

Podpora pro paměti:

3rd Gen AMD Ryzen™ Processors - 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
Next Generation AMD Ryzen PRO Processors - 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

Max.velikost operační paměti:
128 GB

Podpora pro paměti typu:
DDR4
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU

Grafické výstupy:
(na základě procesoru)
1x D-Sub
1x DVI-D
1x HDMI 2.1(4K@60HZ)

Zvuková karta:

Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC

Síťová karta:

Realtek RTL8111H 1Gb Ethernet

Rozšiřující sloty:

1x PCIe 4.0 x16 (x16 mode)
2x PCIe 3.0 x1

RAID řadič:
0, 1, 10

SATA:

4x SATA 6Gb/s ports

M.2:

1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
1x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

USB:

zadní USB porty ( celkem 6 )

2x USB 3.2 Gen 2 port(s)(2 x Type-A)
4x USB 3.2 Gen 1 port(s)(4 x Type-A)

přední USB porty ( celkem 6 )

2x USB 3.2 Gen 1 port(s)(2 x Type-A)
4x USB 2.0 port(s)(4 x Type-A)

Interní porty:

1x CPU Fan connector(s)
2x Chassis Fan connector(s)
1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1x SPI TPM header
4x SATA 6Gb/s connector(s)
1x S/PDIF out header(s)
1x 24-pin EATX Power connector(s)
1x 8-pin EATX 12V Power connectors
1x Front panel audio connector(s) (AAFP)
1x Clear CMOS jumper(s)
1x System panel connector
1x COM port header
1x Speaker connector

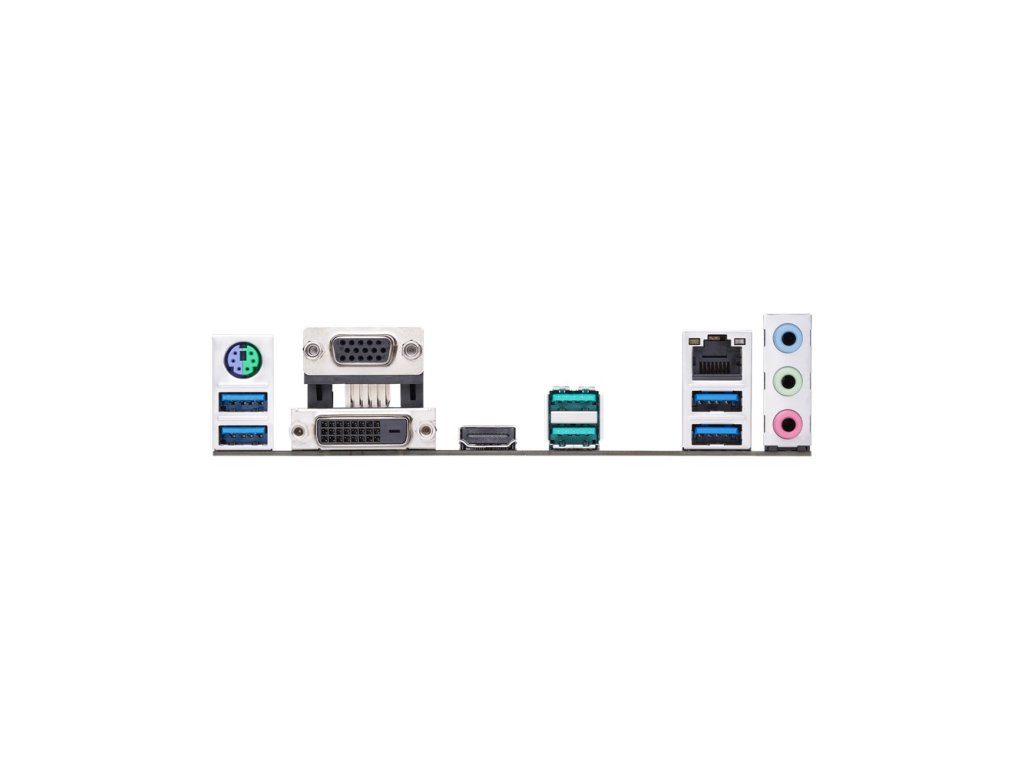

Externí porty:

1x PS/2 keyboard/mouse combo port(s)
1x DVI-D
1x D-Sub
1x HDMI
1x LAN (RJ45) port(s)
2x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
4x USB 3.2 Gen 1 (blue) Type-A
3x Audio jack(s)

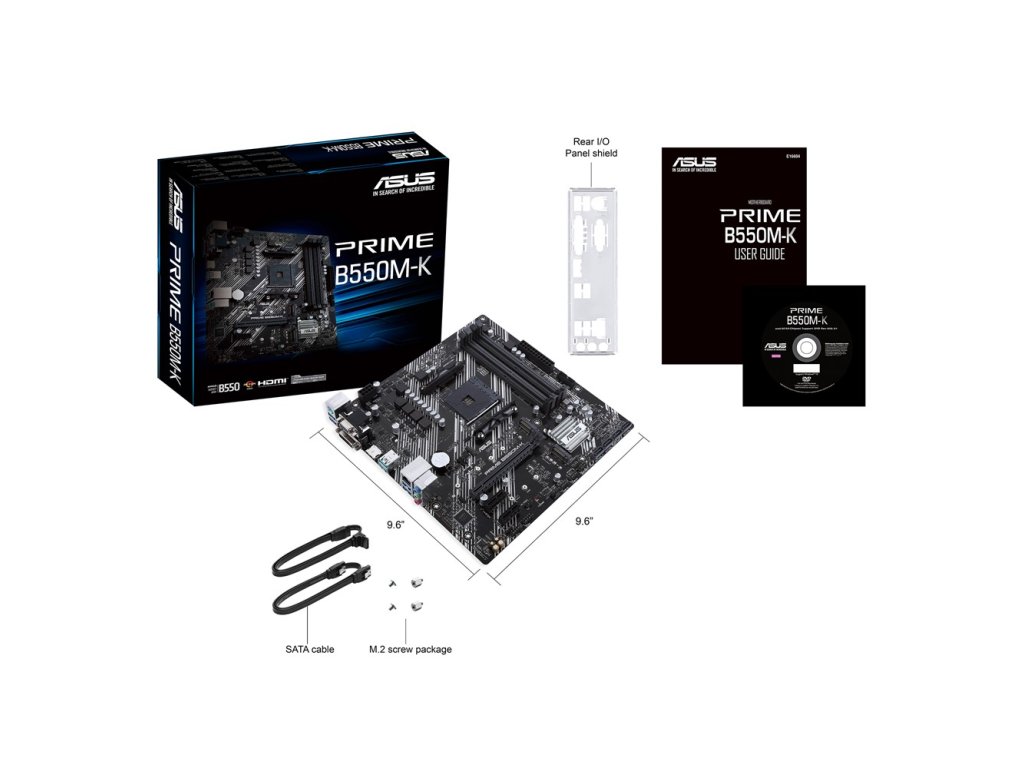

Obsah balení:

User's manual
I/O Shield
2x SATA 6Gb/s cable(s)
1x Supporting DVD
1x M.2 SSD screw package(s)

BIOS:
256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobce:
https://www.asus.com/Motherboards/PRIME-B550M-K https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www.asus.com/support/FAQ/1046215
