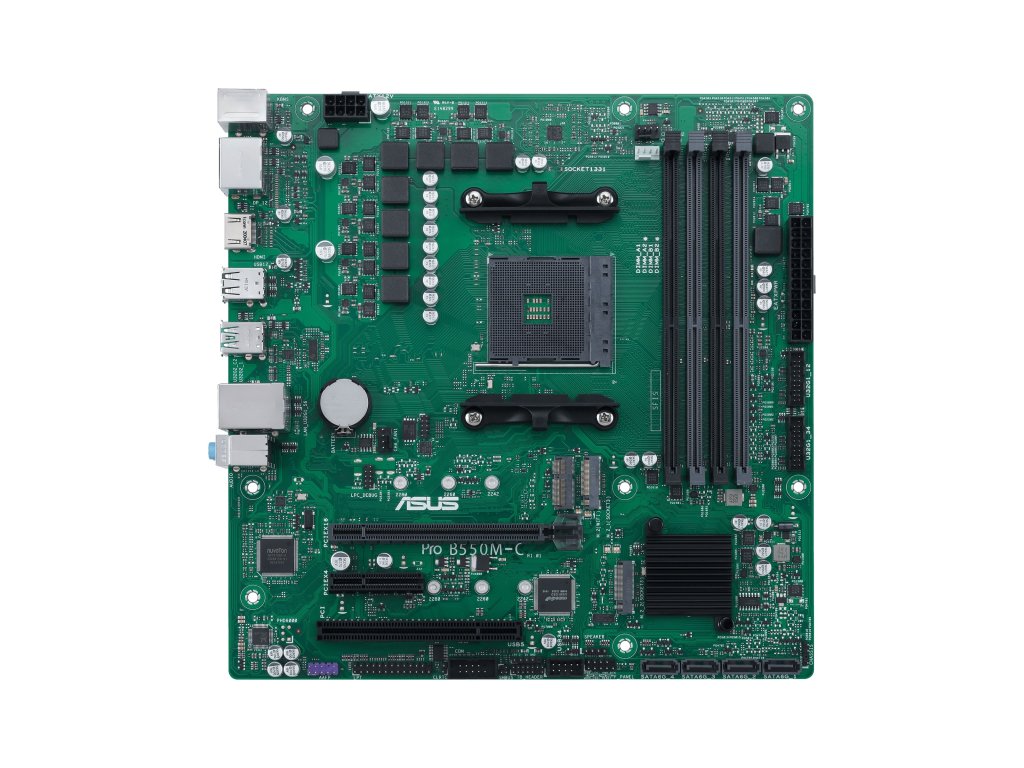

ASUS PRO B550M-C/CSM/AM4/mATX

Detailní popis produktu

Kód: 20070178006
P/N: 90MB15Q0-M0EAYC
EAN: 4718017992336

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)

Chipset:
AMD B550

Rozměrový formát:
mATX Form Factor (244 mm x 244 mm)

Podpora pro procesory:
AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

Patice procesoru:
AM4 TPM 2.0 IC Onboard – TPM 2.0 chip přímo na MB

Pozice na paměti:
4x DDR4 DIMM

Podpora pro paměti:

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors - 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
AMD Ryzen™ 4000 G-Series Desktop Processors - 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

Max.velikost operační paměti:
128 GB

Podpora pro paměti typu:
DDR4
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.

Grafická karta:
Integrated Graphics Processor (na základě procesoru)
2x DisplayPort
1x HDMI 2.1(4K@60HZ)

Zvuková karta:

Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC

Síťová karta:

Realtek RTL8111H 1Gb Ethernet

Rozšiřující sloty:

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

1x PCIe 4.0 x16 (x16 mode)

AMD Ryzen™ 4000 G-Series Desktop Processors

1x PCIe 3.0 x16 (x16 mode)

AMD B550 Chipset

1x PCIe 3.0 x4
1x PCI

RAID řadič:
0, 1, 10

SATA:

4x SATA 6Gb/s port(s)

M.2:

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :

1x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support

AMD Ryzen™ 4000 G-Series Processors :

1x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

AMD B550 Chipset

1x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

USB:

zadní USB porty ( celkem 6 )

2x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
2x USB 3.2 Gen 1 port(s)(2 x Type-A)
2x USB 2.0 port(s)(2 x Type-A)

přední USB porty ( celkem 7 )

4x USB 3.2 Gen 1 port(s)(4 x Type-A)
3x USB 2.0 port(s)

Interní porty:

1x CPU Fan connector(s)
2x Chassis Fan connector(s)
2x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)
2x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1x M.2 with E key for Wi-Fi module
1x LPT header
4x SATA 6Gb/s connector(s)
1x Thunderbolt header(s)
1x 24-pin EATX Power connector(s)
1x 8-pin EATX 12V Power connectors
1x Front panel audio connector(s) (AAFP)
1x SMBus header(s)
1x System panel(s)
1x Clear CMOS jumper(s)
1x COM port header
1x Chassis intrusion header
1x LPC Debug header
1x Speaker connector

Externí porty:

1x Realtek® RTL8111H
1x PS/2 keyboard (purple)
1x PS/2 mouse (green)
2x DisplayPort
1x HDMI
2x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
2x USB 3.2 Gen 1 Type-A
2x USB 2.0
3x Audio jack(s)

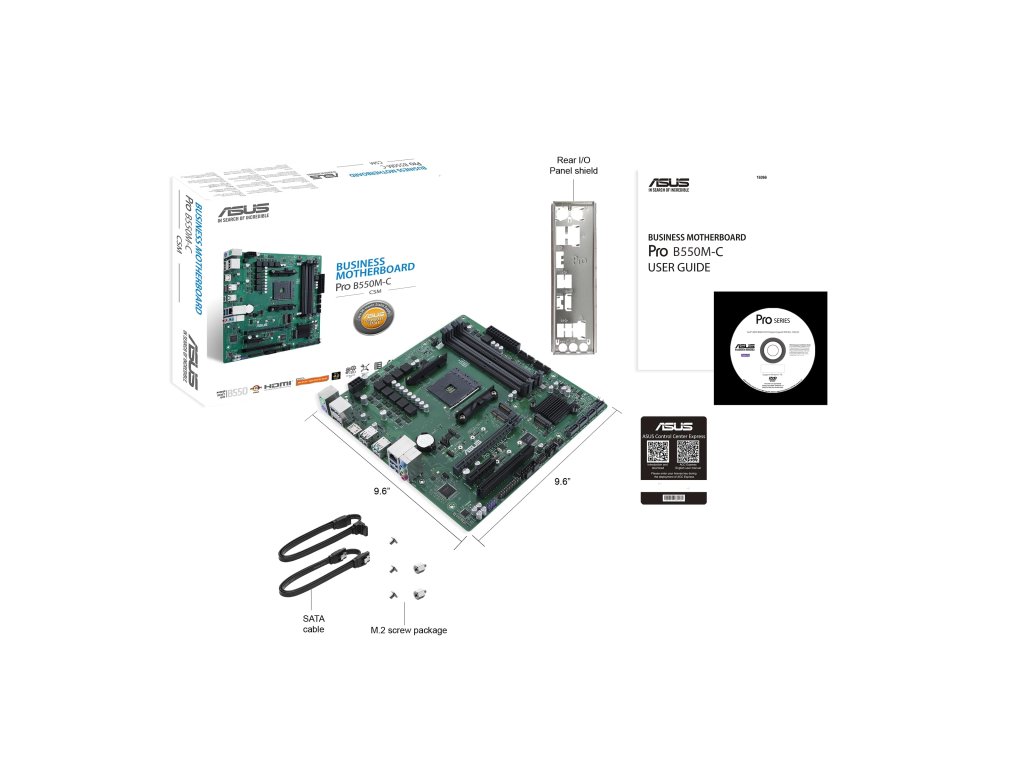

Obsah balení:

1x ACC Express Activation Key Card
I/O Shield
2x SATA 6Gb/s cable(s)
1x Supporting DVD
User manual
3x M.2 SSD screw package(s)
2x M.2 SSD Hex screw packages

BIOS:
256 Mb Flash ROM, UEFI AMI BIOS
