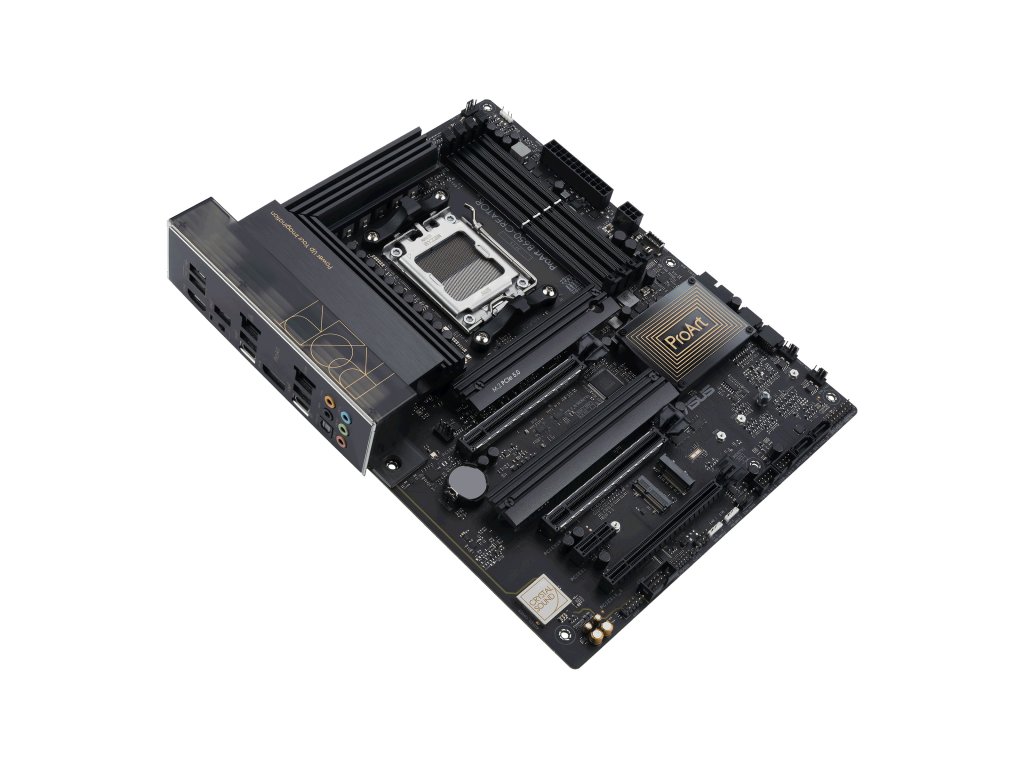

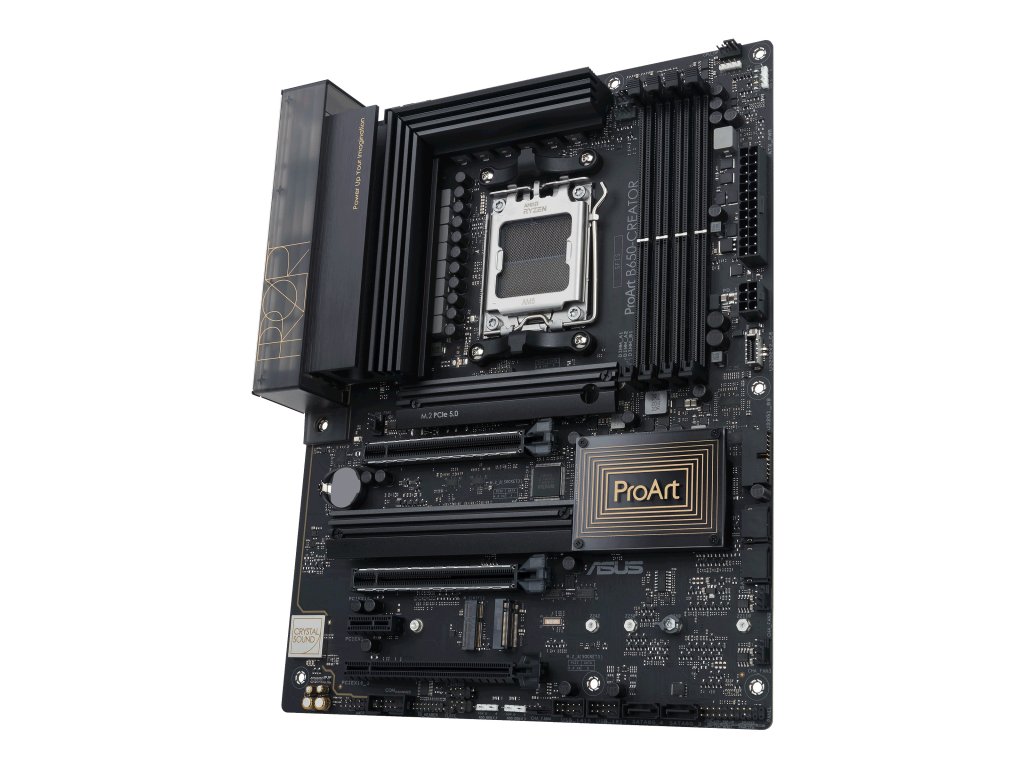

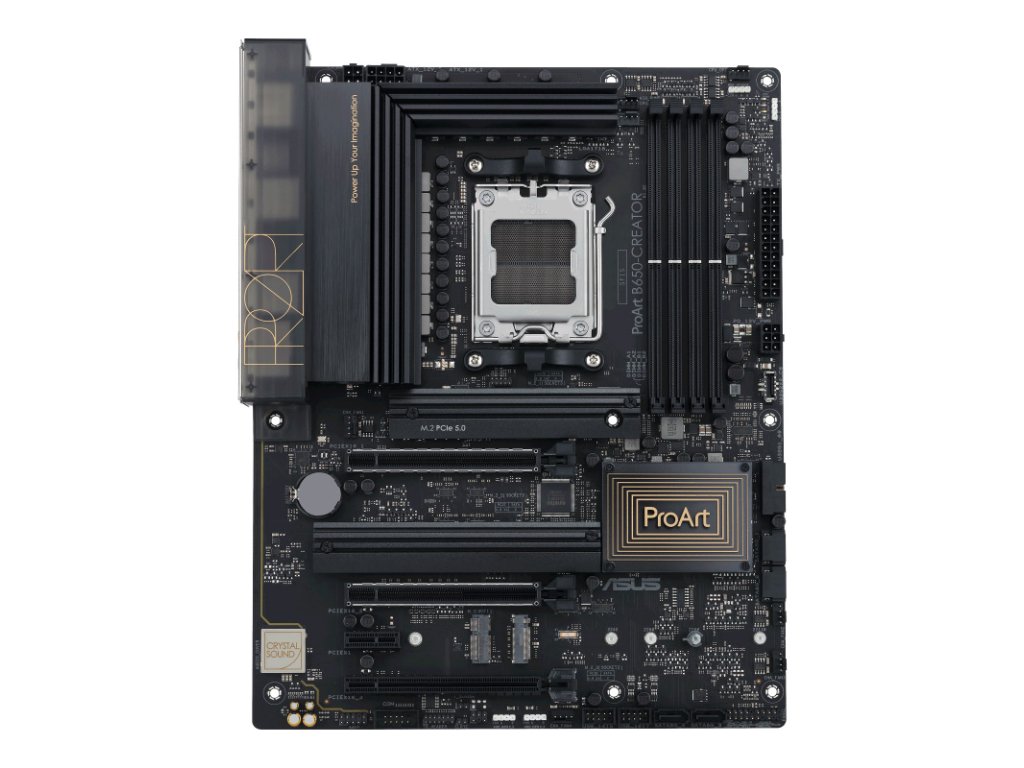

ASUS ProArt B650-CREATOR/AM5/ATX

Detailní popis produktu

Kód: 20070177974
P/N: 90MB1C40-M0EAY0
EAN: 4711081988090

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)

Chipset:
AMD B650

Rozměrový formát:
ATX Form Factor (30.5 cm x 24.4 cm)

Podpora pro procesory:
AMD Ryzen 7000 Series Desktop Processors

Patice procesoru:
AM5

Pozice na paměti:
4 x DIMM, Dual Channel Memory Architecture

Podpora pro paměti:
DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 MHz

Max.velikost operační paměti:
128 GB

Podpora pro paměti typu:
ECC, Non-ECC

Grafické výstupy:
(na základě procesoru)
1 x DisplayPort (Input only)
1 x HDMI port
1 x USB Type-C

Zvuková karta:
Realtek 7.1 Surround Sound High Definition Audio CODEC
Podpora S/PDIF out port

Síťová karta:

1 x Realtek 2.5Gb Ethernet
1 x Realtek 1Gb Ethernet

Rozšiřující sloty:

2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes)
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot

RAID řadič:
RAID 0/1/10

SATA:
4 x SATA 6Gb/s ports

M.2:
3 x M.2 slots

USB:

Interní:

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Externí:

1 x USB 3.2 Gen 2 port (1 x USB Type-C, shared with DisplayPort graphic output )
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C)
2 x USB 2.0 ports (2 x Type-A)

Interní porty:

I/O ConnectorsFan and Cooling related

1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
1 x 6-pin PCIe Power connector

Storage related

3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x 20-5 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt (USB4) header

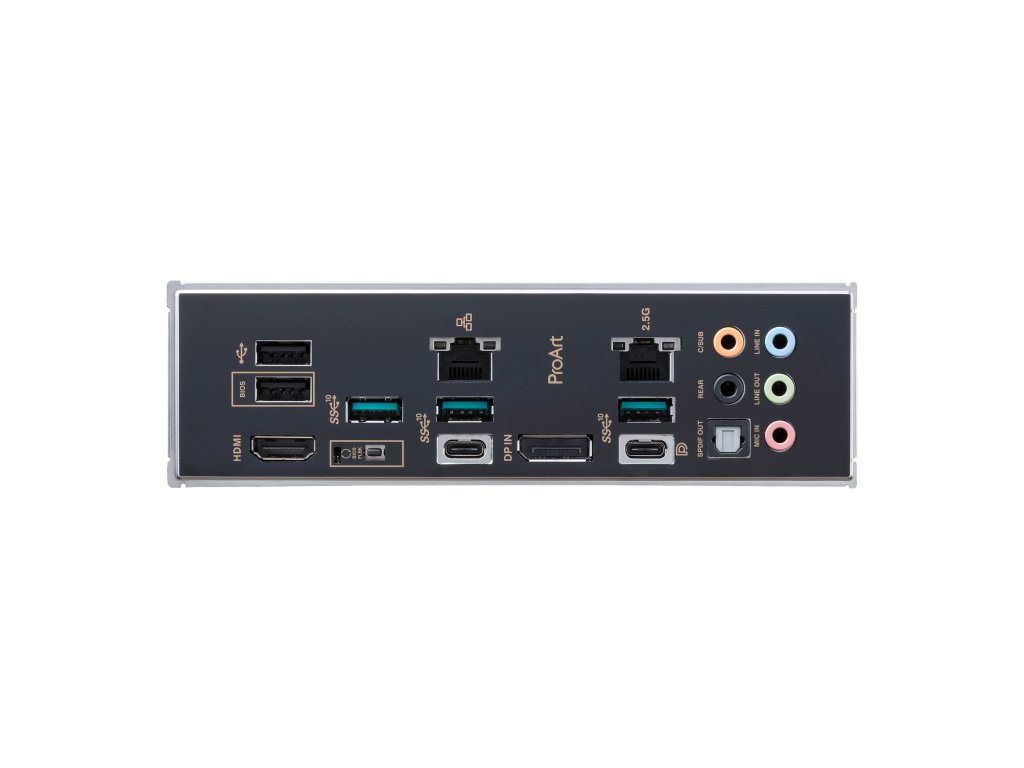

Externí porty:

1 x USB 3.2 Gen 2 port (1 x USB Type-C, shared with DisplayPort graphic output )
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI port
1 x Realtek 2.5Gb Ethernet
1 x Realtek 1Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button

BIOS:
UEFI AMI BIOS, 256 Mb Flash ROM
