ASUS TUF GAMING B860M-PLUS WIFI

Detailní popis produktu

Kód: 2008303266
P/N: 90MB1JV0-M0EAY0
EAN: 4711387783092

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)

ASUS TUF GAMING B860M-PLUS WIFI

mATX Form Factor

CPU:
Support Intel® Core™ Ultra Processors (Series 2) - LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset:
Intel® B860 Chipset

Paměť:
4 x sloty DIMM, max. 192 GB, DDR5 - Podpora až 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
Dvoukanálová paměťová architektura
Osazení DIMM
Podporuje paměťový modul Intel® Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile III(AEMPIII)

Grafické porty:

1 x DisplayPort
1 x HDMI™ port
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output

Rozšiřující sloty:
Intel® Core™ Ultra Processors(series 2)
1 x PCIe 5.0 x16 slot Intel® B860 Chipset
1 x PCIe 4.0 x4 slot

Úložný prostor:
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Ultra Processors(series 2)
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

Ethernet:

1 x Realtek 2.5Gb Ethernet
TUF LANGuard

Připojení a Bluetooth:

Wi-Fi 7

2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4

USB:
Zadní USB (Total 7 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A) Přední USB (Total 7 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 headers support 2 additional USB 2.0 ports

Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback Audio Features
Audio Shielding
Rear optical S/PDIF out port
Premium audio capacitors
Dedicated audio PCB layers

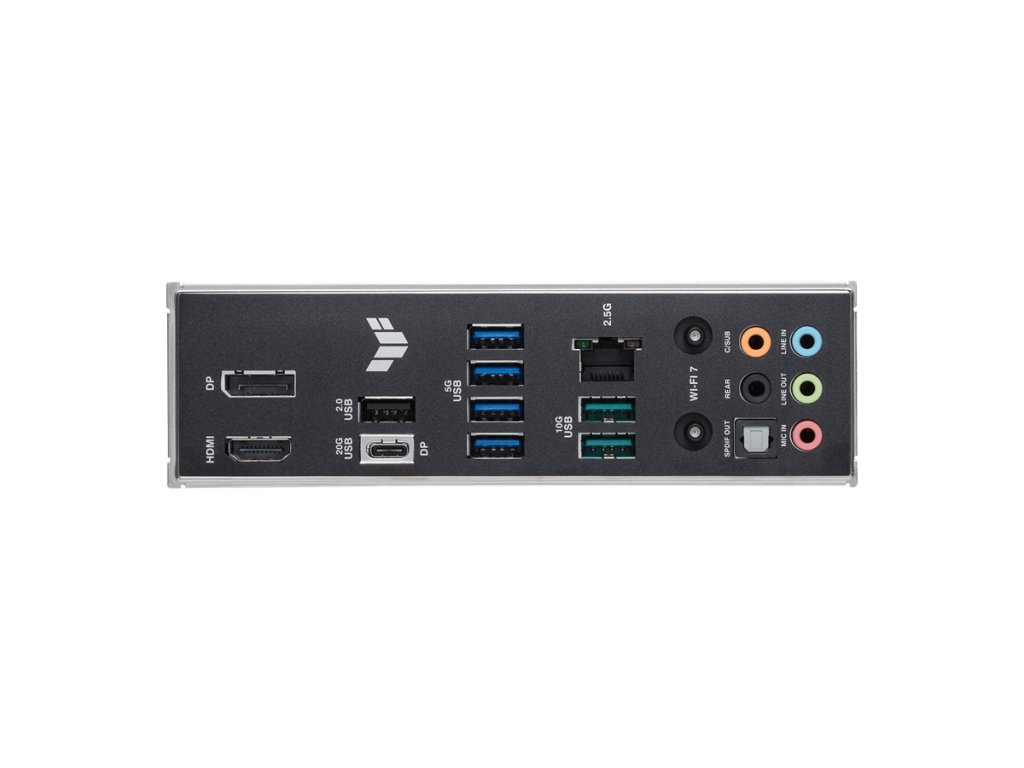

Vstupy/výstupy zadního panelu:

1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port

Interní vstupy/výstupy:
Ventilátory a chlazení:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers Napájení:
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors Úložiště:
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports USB:
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 port Různé:
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x Front panel audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header

Příslušenství:
Kabely:
2 x SATA 6Gb/s cables Různé:
1 x ASUS WiFi Q-Antenna
2 x M.2 Rubber Packages
1 x TUF Gaming sticker
1 x Screw package for M.2 SSD Dokumenty:
1 x Quick start guide
