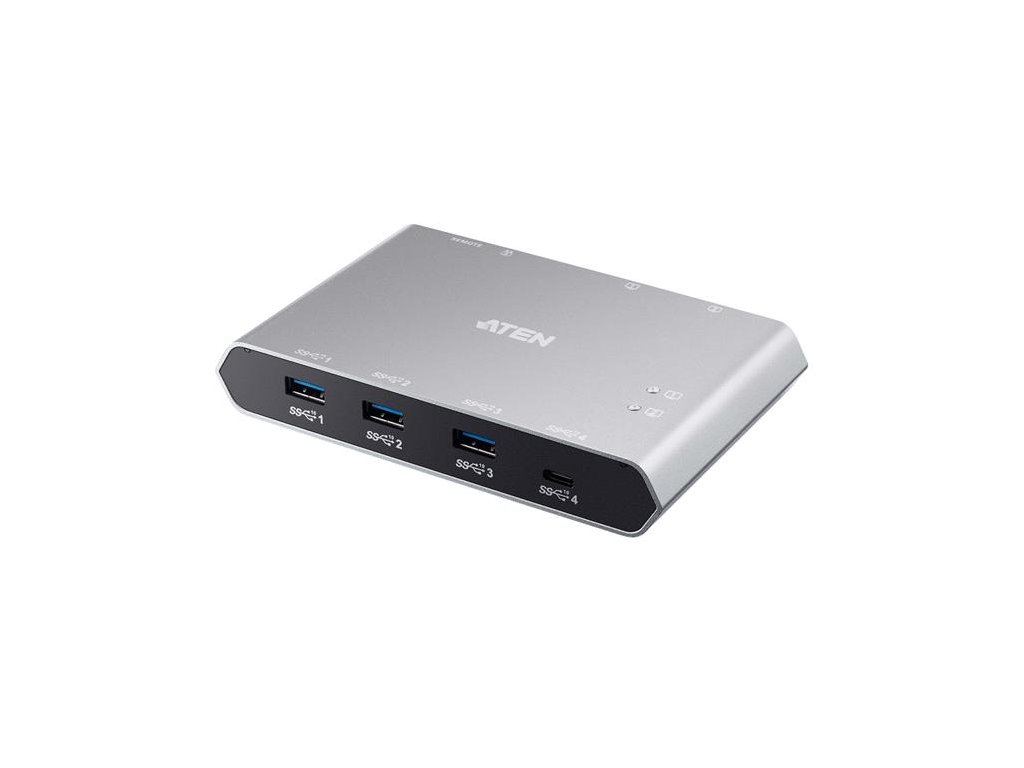

Aten 2-Port USB-C Gen 2 Sharing Switch with Power Pass-through

Detailní popis produktu

Kód: 345997
P/N: US3342-AT
EAN: 4719264649189

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)

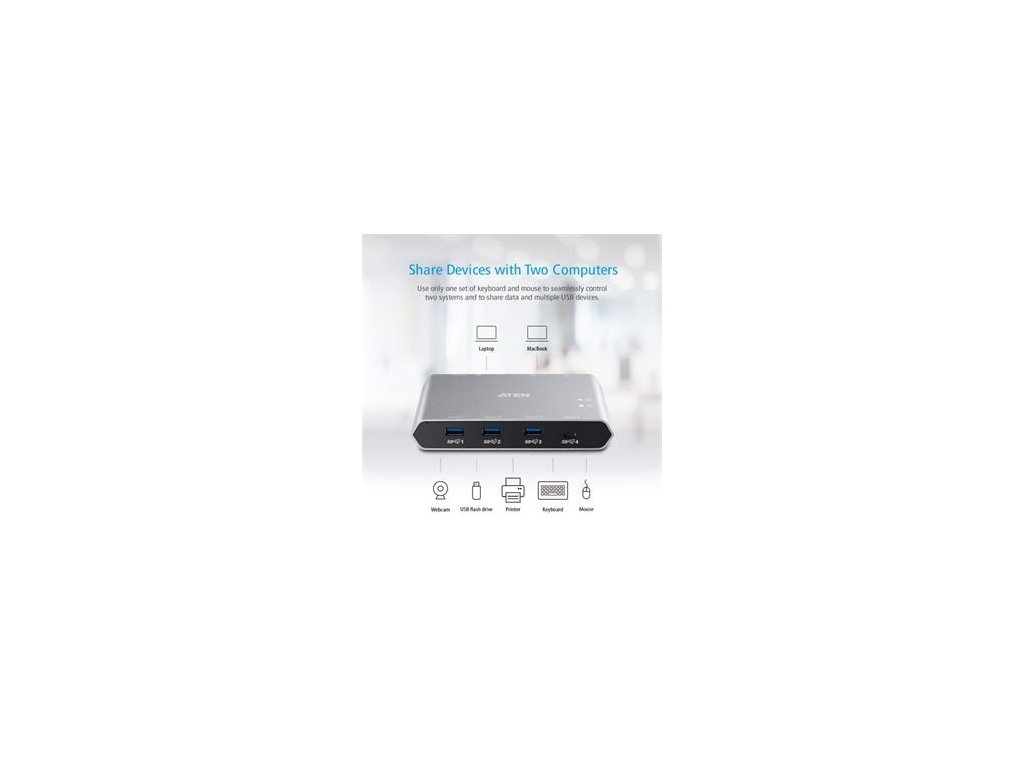

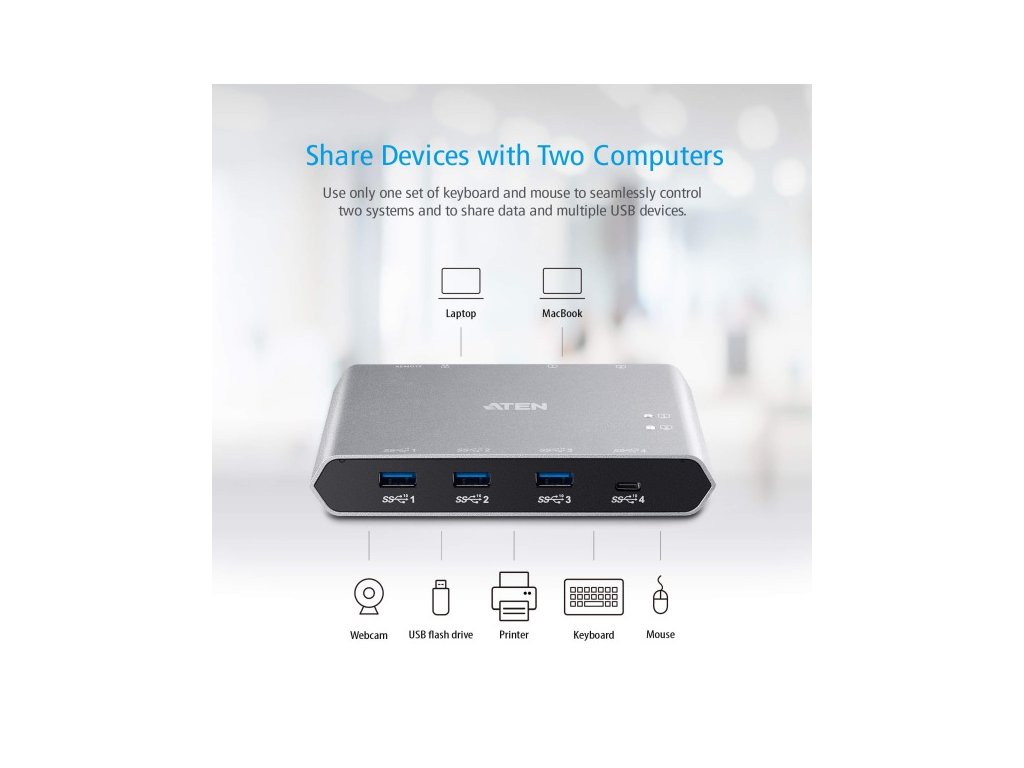

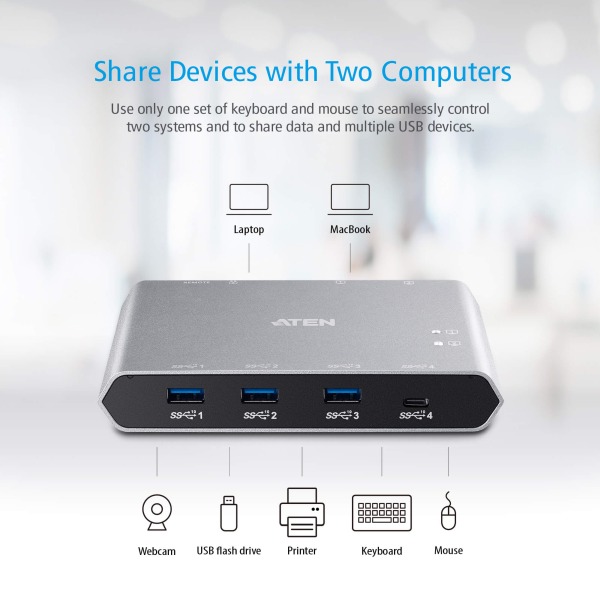

Enables two USB-C computers to share 4 USB 3.2 Gen 2 peripheral devices with data transfer rates up to 10Gbps

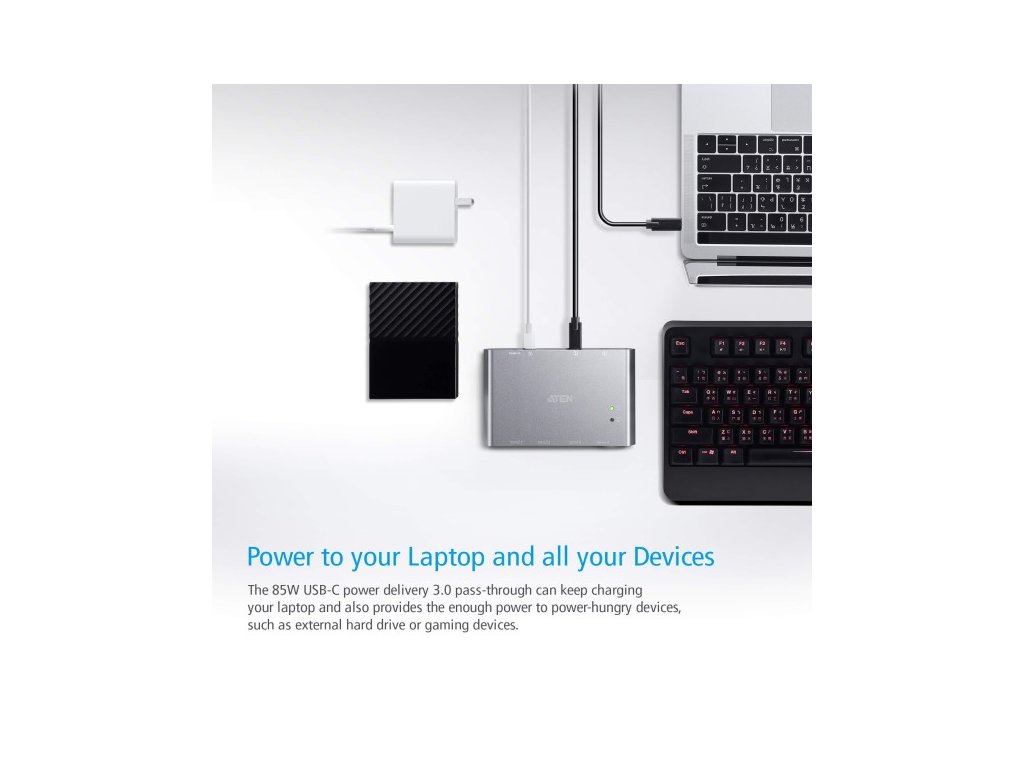

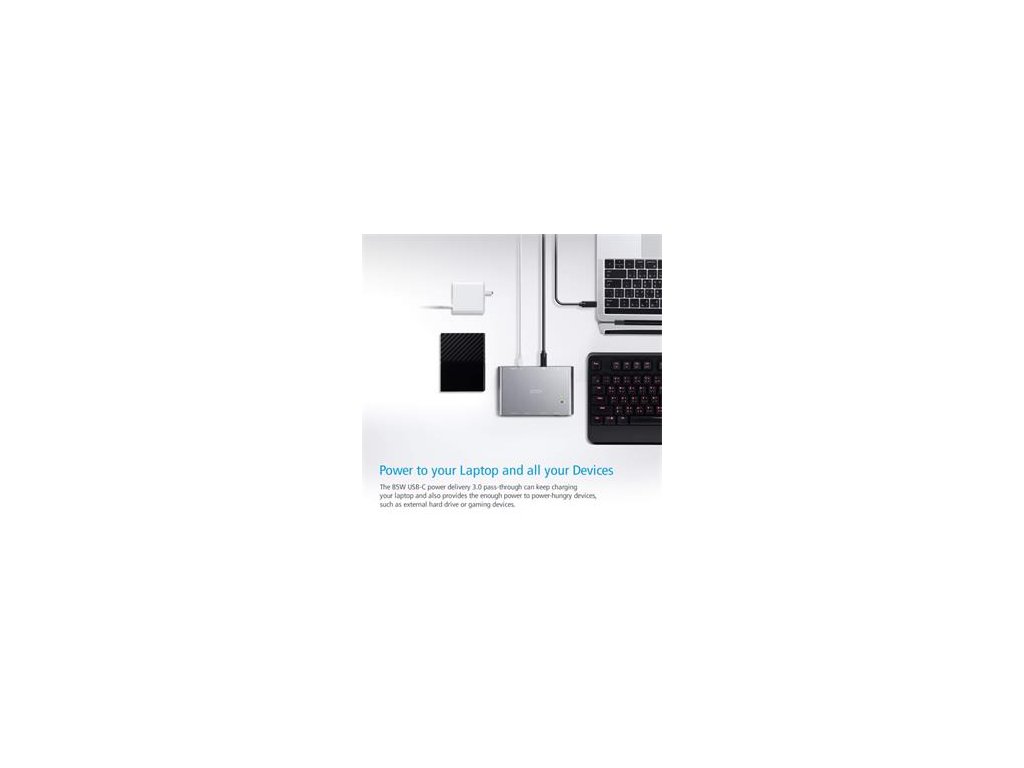

Supports USB-C Power Delivery 3.0 for laptop charging up to 85W (Additional USB-C Power Adapter is needed)*
BEZEL X – Enable file transfer function and mice control cross two platforms, Windows and Mac
Supports power profiles 5V, 9V, 15V, and 20V power specification

ATEN US3342 is a 4-port USB 3.2 Gen 2 peripheral sharing device that allows users to share data between four USB devices in two different USB-C enabled laptops. The US3342 is USB 3.2 Gen 2 compliant, which can support data transfer rate up to 10Gps, and also compatible with USB 3.1 Gen 1, USB 2.0 and USB1.1.

With the US3342, you can quickly and effortlessly switch computers by using a convenient remote port selector pushbutton with LED that indicates which computer is being active. It provides the power that matched to USB-C Windows or Mac laptops with PD Profile specifications of 5V, 9V, 15V, and 20V.

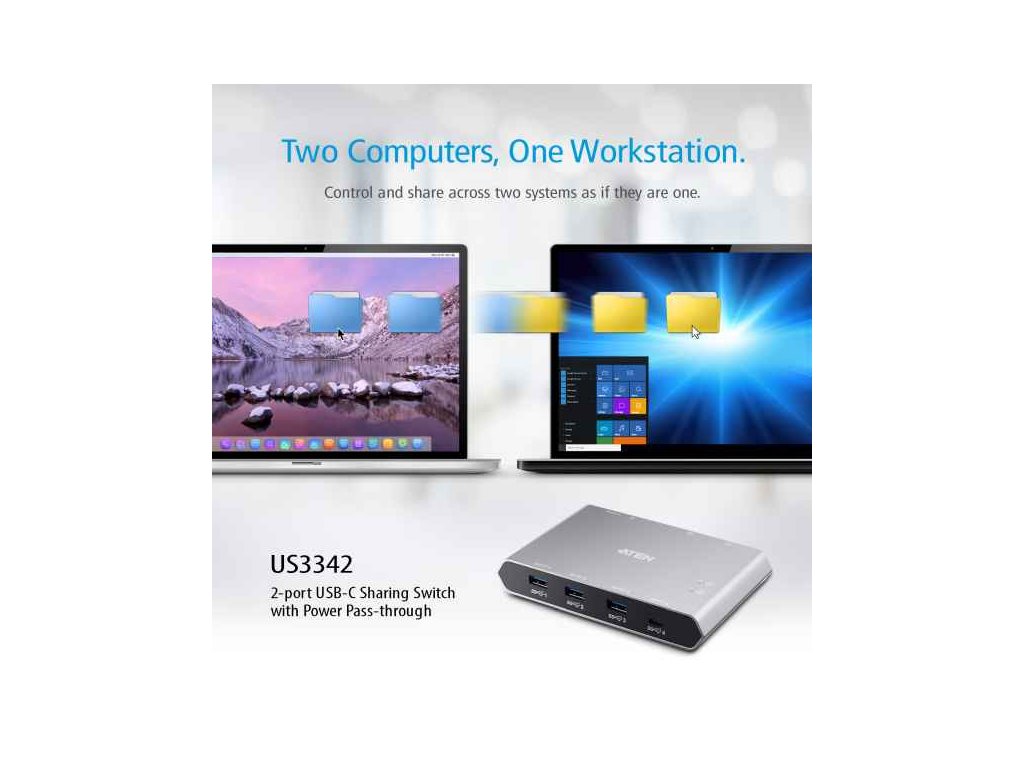

Featuring exclusive function by BEZEL X software, the US3342 allows two laptops to share files and data across two different platforms - Window and Mac, by dragging the mouse from one screen to another. The BEZEL X software makes it easier to control and transfer files in a fingertip.

The connecting cables are bundled to save the extra cost of purchasing more USB cables. The additional USB-C cable included in the US3342 package, which allows the users to connect it to the USB-C laptops for flexible installation. The US3342 is the most cost-effective solution for USB-C equipped laptops.

In conclusion, the US3342 with its compact and all-in-one design is an ideal solution for users that seeks to save desk space and keep the desk well-organized in an efficient manner.

Enables two USB-C computers to share 4 USB 3.2 Gen 2 peripheral devices with data transfer rates up to 10Gbps
Supports USB-C Power Delivery 3.0 for laptop charging up to 85W (Additional USB-C Power Adapter is needed)*
BEZEL X – Enable file transfer function and mice control cross two platforms, Windows and Mac
Supports power profiles 5V, 9V, 15V, and 20V power specification
Switch device via Remote Port Selector by pressing a button
LEDs Console Indicator – Allow users to know which computer is active
Plug and play – No drivers or external power adapter needed
Over-current protection

*For device charging, a Limited Power Source (LPS) certified USB-C PD Power Adapter over 65Watt is recommended. The minimum system power requirement for basic USB functions and video output should be at least 5V, 3A.

Package Contents
1x US3342 2-Port USB-C Gen 2 Sharing Switch with Power Pass-through
2x USB-C 3.1 Gen 2 Cable
1x Remote Port Selector
1x User Instructions

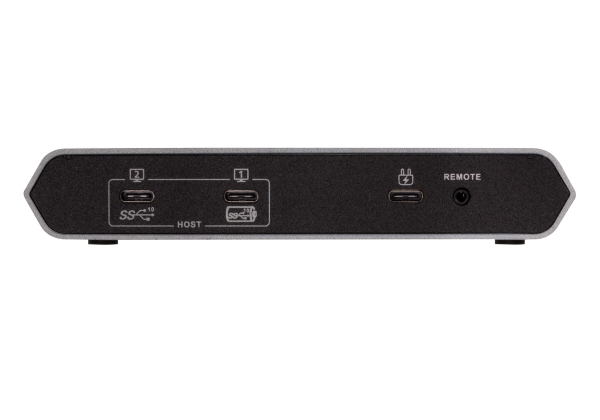

Computer Connections 2

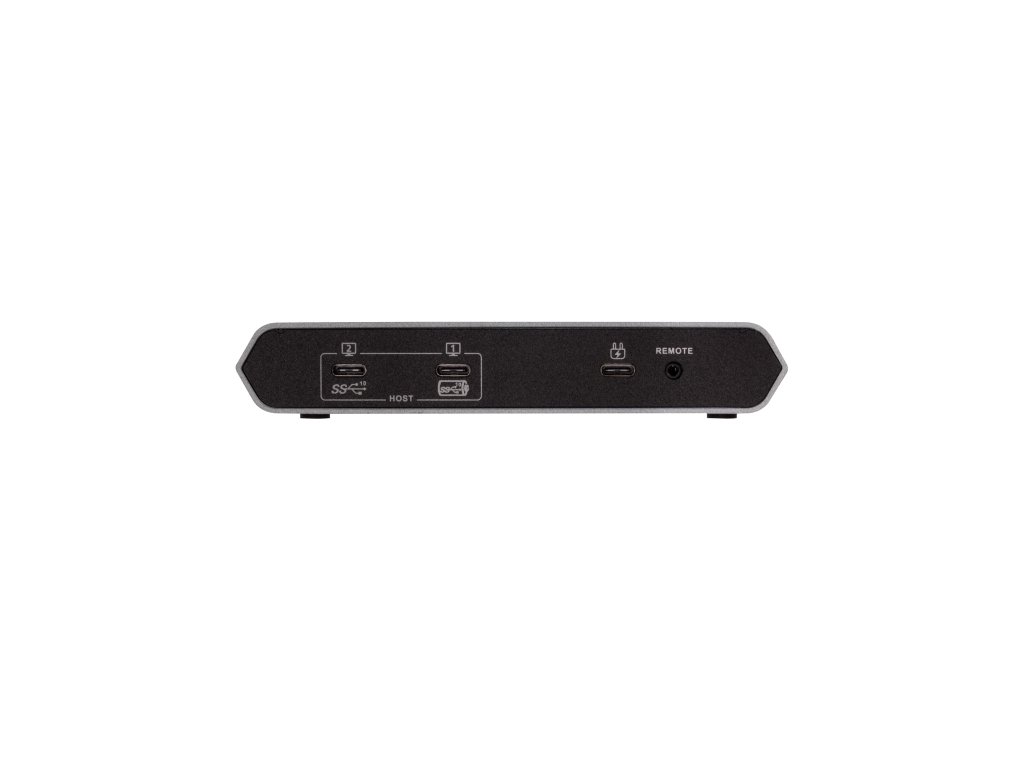

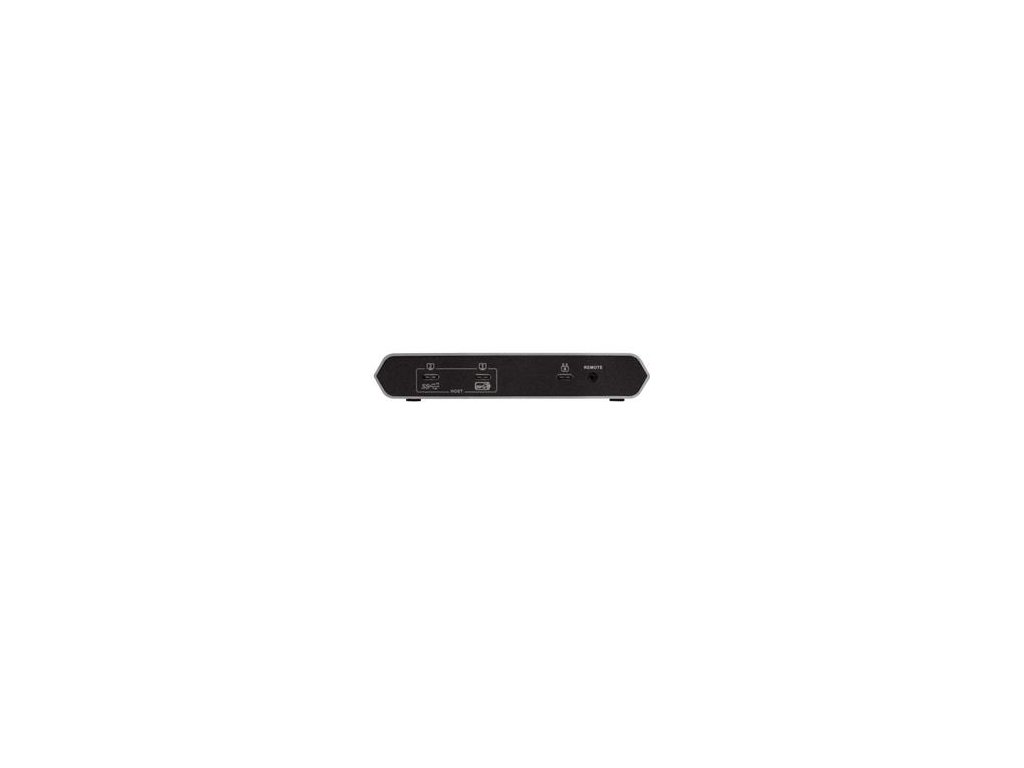

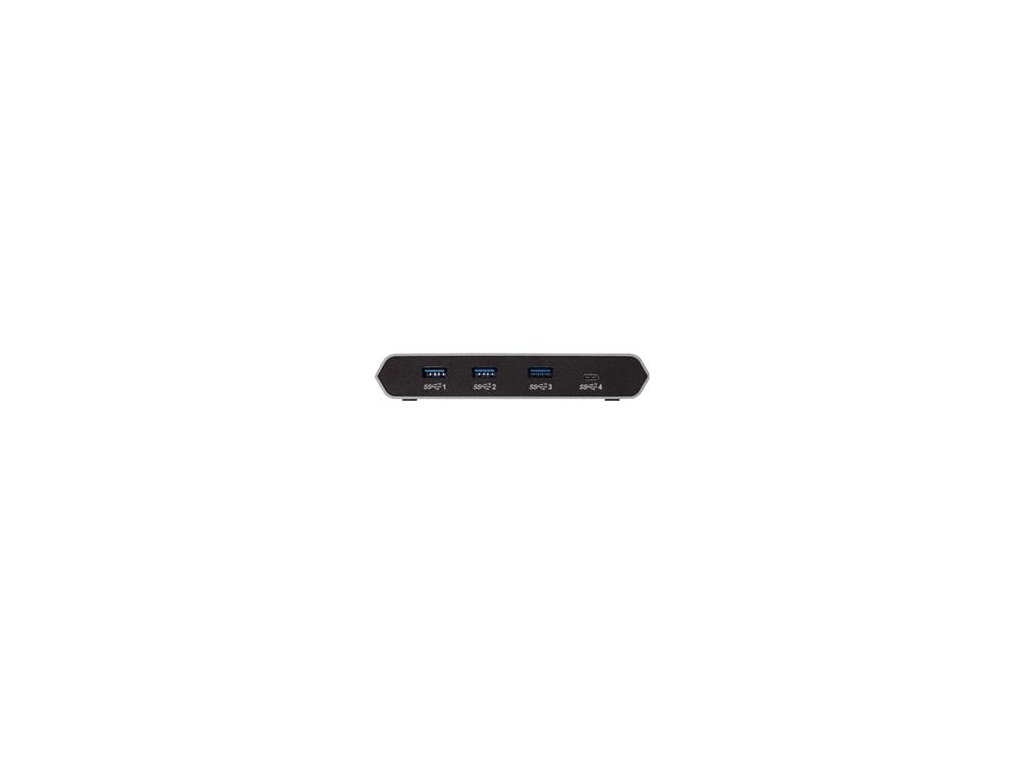

Connectors
Computer

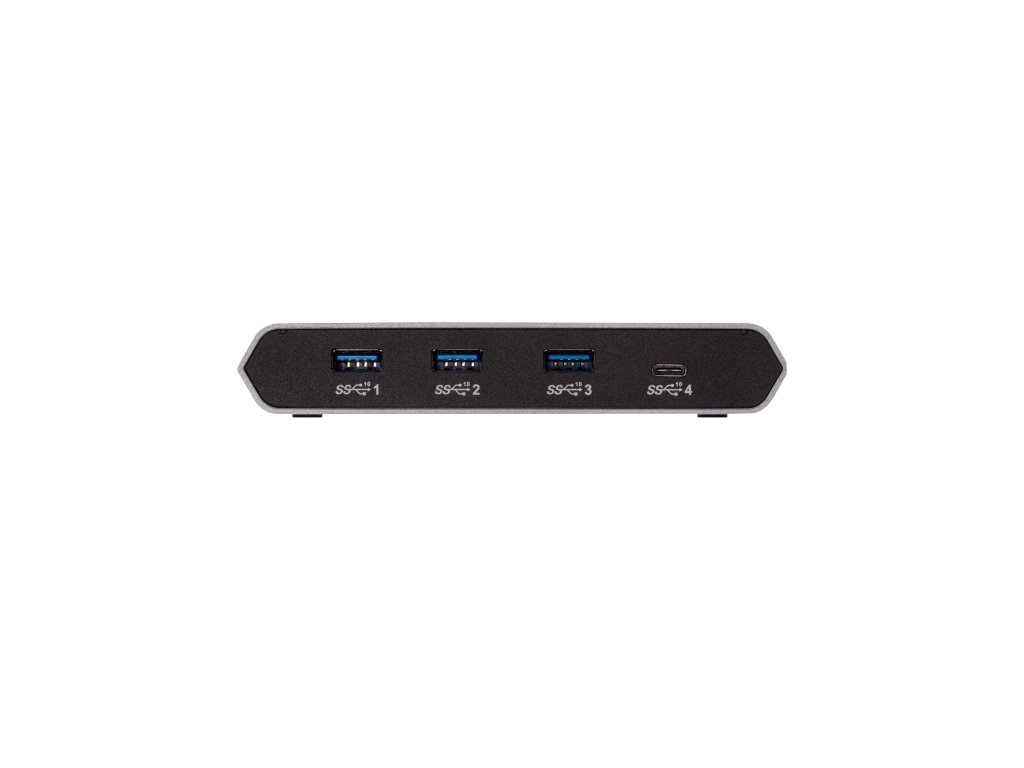

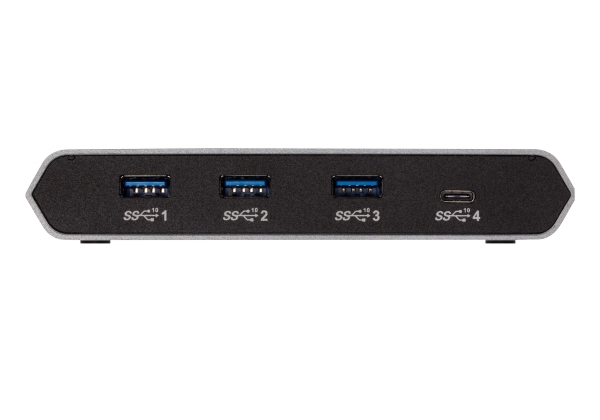

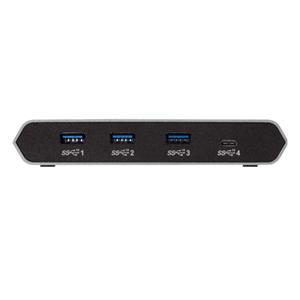

USB 3.2 Gen 2 Type-C Female (Black) x 2

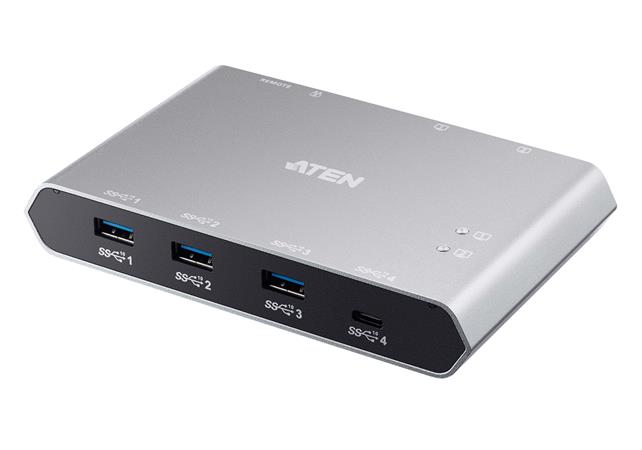

Device
USB 3.2 Gen 2 Type-A Female (Blue) × 3
USB 3.2 Gen 2 Type-C Female (black) x 1
Power
USB Type-C Female x 1, supports USB PD3.0 at 5V, 9V, 15V and 20V output

Port Selection
Input
Remote port selector / software
Power Consumption
DC5V:0.43W:428BTU

LEDs
Selected
2 (White)

Environmental
Operating Temperature
0-40?
Storage Temperature
-20-60?
Humidity
0–80% RH, Non-condensing

Physical Properties
Housing
Aluminum
Weight
0.26 kg ( 0.57 lb )
Dimensions (L x W x H)
14.30 x 9.00 x 2.38 cm
(5.63 x 3.54 x 0.94 in.)

Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
