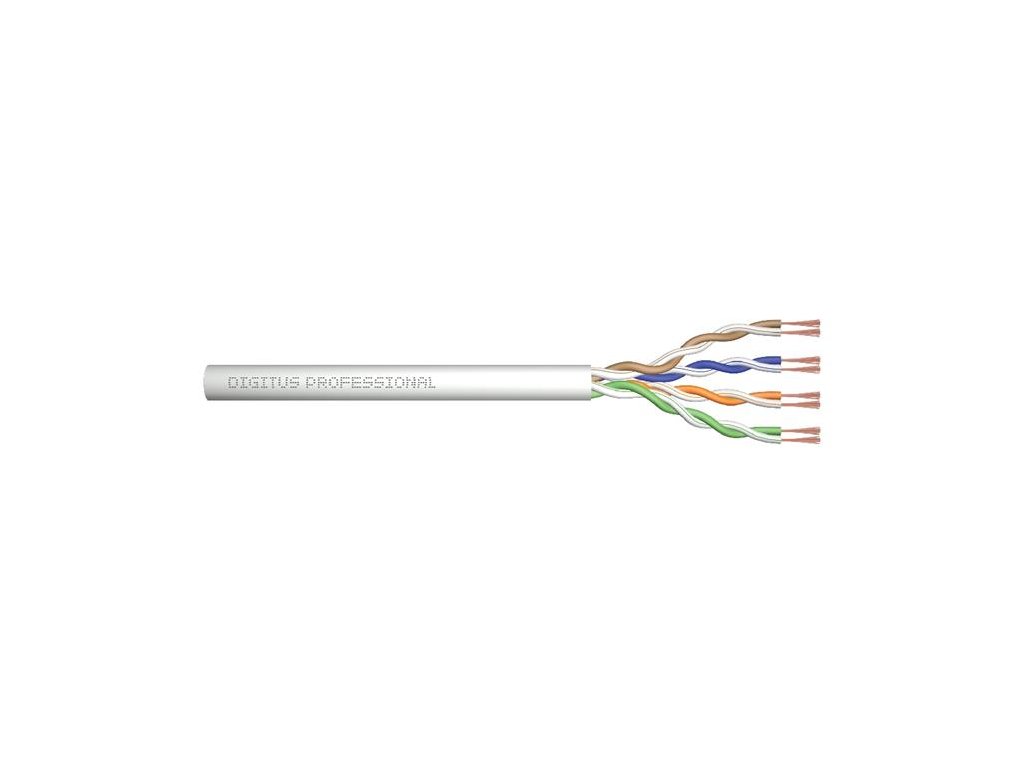

Digitus UTP kabel lanko AWG24/7, Cat.5e, box 100m, PVC

Detailní popis produktu

Kód: 345678
P/N: DK-1511-P-1-1
EAN: 4016032425892

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)
CAT 5e U/UTP twisted pair patch cord, raw

CAT 5e U-UTP patch cable, raw length 100 m, paper box, AWG 26/7, PVC, simplex, color grey

Future-oriented standards and high-end quality for your network.

Suitable for direct assembly of RJ45 connectors in order to produce patch cords
Suitable for installations of class D cable lines, 100 MHz
According to the norms ANSI/TIA 568-C; ISO/IEC 11801 2nd Ed.; EN 50173; EN 50288-3-1
Conductor: Copper (Cu)
PoE ready
The raw patch cords are manufactured and tested acc. to the ISO/IEC 11801 and DIN EN 50173 specifications. They will guarantee that the installed cabling system is compliant with the ISO & EN channel specification requirements and therefore provide optimum performance levels for your cablings.The raw patch cords are suitable for the direct assembly of RJ45 connector in order to produce patch cords.

Technical details
Insulation: HD-PE
Outer sheath diameter: 0.55 mm nominal
Overall diameter: 4.6 mm nominal
Tensile loading: 150 N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Shipping- and storage temperature range: -10 °C up to +75 °C
Operating temperature range: -10 °C up to +60 °C
Installation temperature range: 0 °C up to +50 °C
DC loop resistance: ? 280 ? km
Resistance unbalance ? 2%
Insulation resistance: ? 2000M?/km @500V
Capacitance: nom. 48 nF/km @ 800 Hz
Capacitance unbalance (pair-ground): ? 1500 nF/km
Characeristic Impedance: 100 ± 15 Ohm @ 10-100 MHz
NVP: 67%
Propagation delay: nom. ? 555 ns/100 m
Delay skew: nom. ? 50 ns/ 100 m
Test voltage (DC 1 min) core/core: 1000V
Coupling attenuation: ? 40 dB
Capacitance: 48 pF/m nominal @ 800 Hz
Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz
Insulation resistance: 2 GOhm x km min.
DC loop resistance: 147 Ohm/Km max. (2% max. resistance unbalance)
Voltage resistance: 72 Vdc max.
Coupling attenuation: 40 dB
Signal propagation delay: 450 nS/100 m max.
Propagation delay: 20 nS/100 m max.
