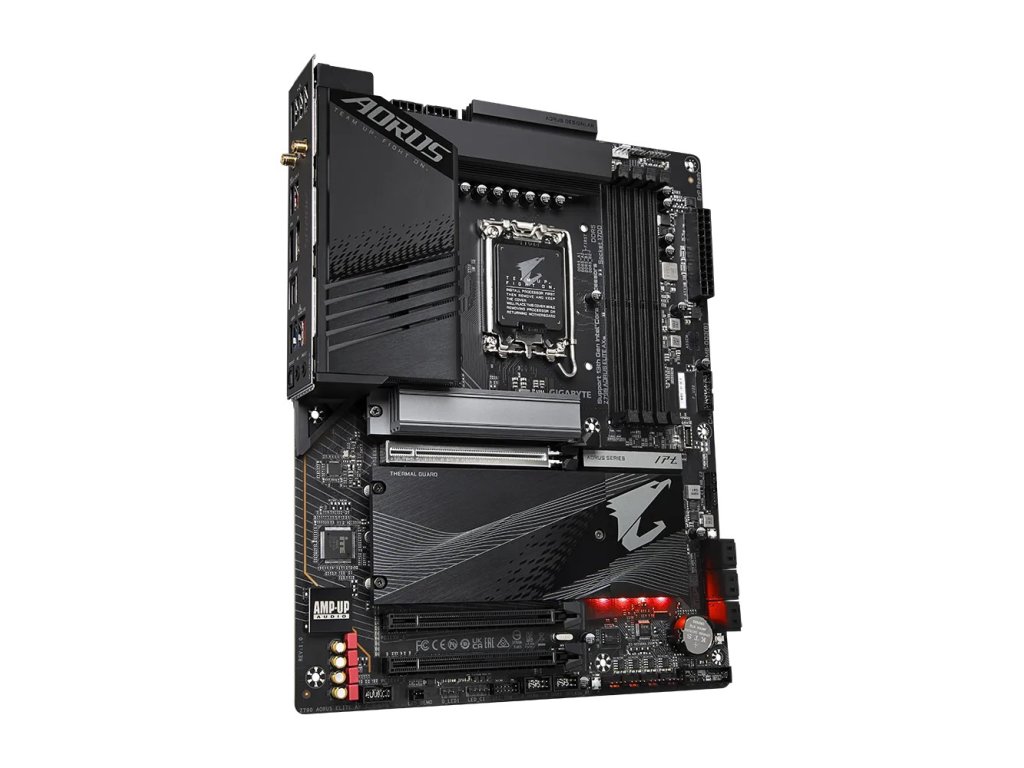

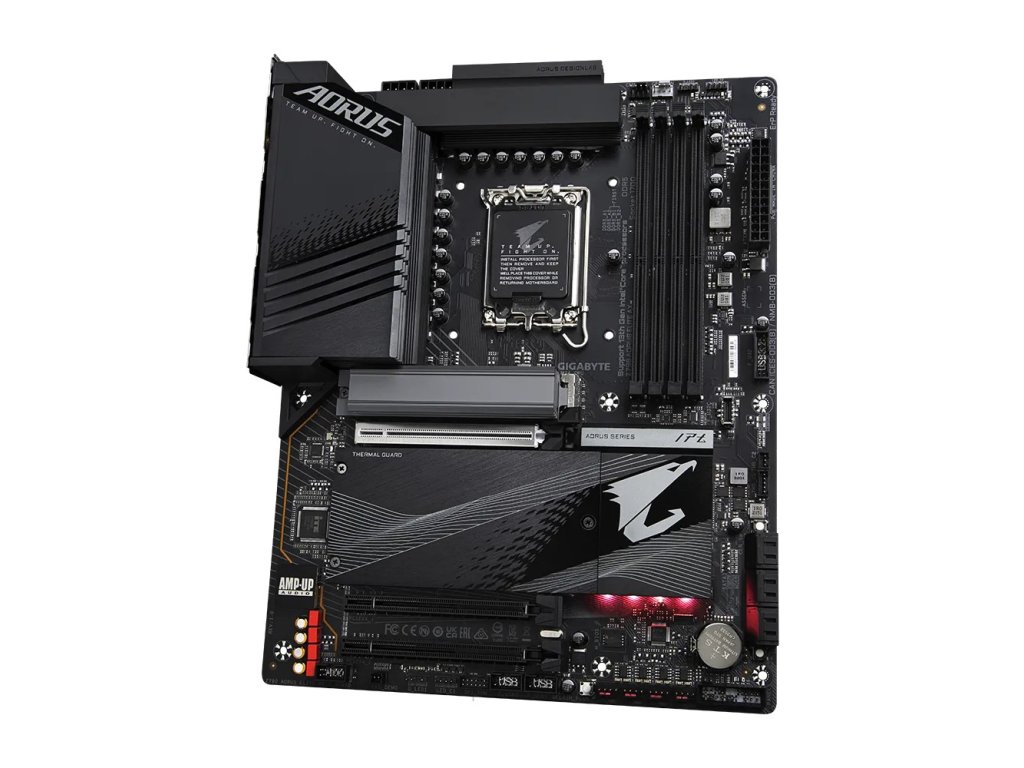

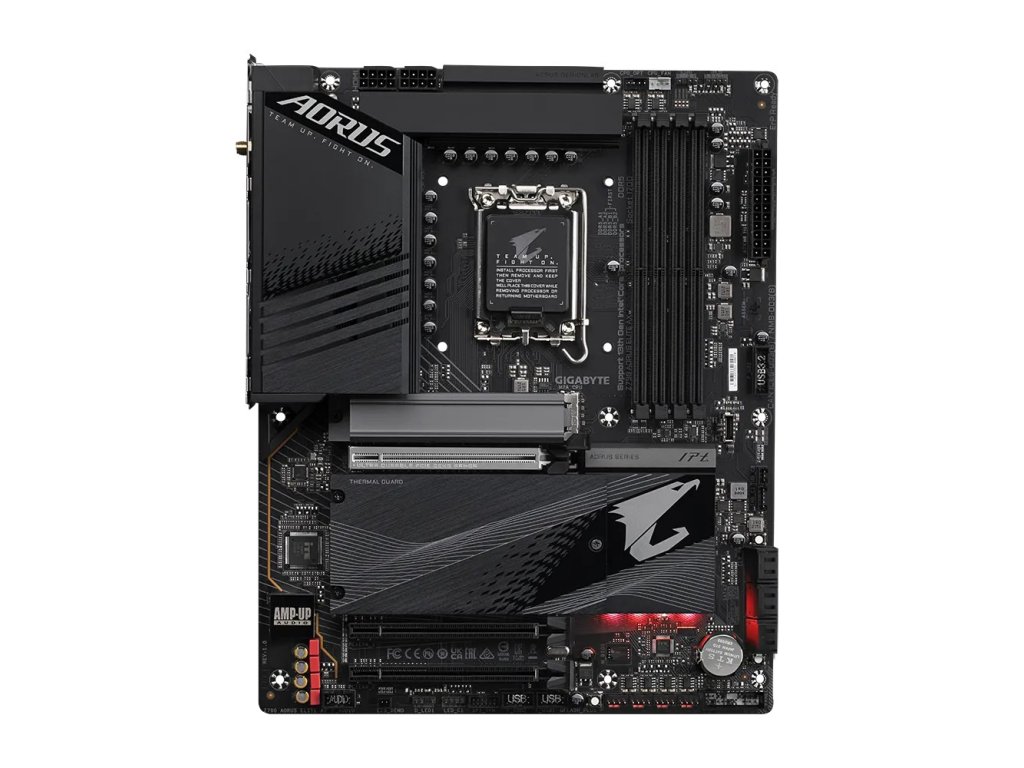

GIGABYTE Z790 AORUS ELITE AX/LGA 1700/ATX

Detailní popis produktu

Kód: 200636003
P/N: Z790 AORUS ELITE AX
EAN: 4719331849467

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)

Chipset:
Intel Z790 Express Chipset

Rozměrový formát:
ATX Form Factor, (30.5cm x 24.4cm)

Podpora pro procesory:
13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors

Patice procesoru:
LGA 1700

Pozice na paměti:
4 x DDR DIMM sockets, Dual channel memory architecture

Podpora pro paměti:
DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules

Max.velikost operační paměti:
128 GB (32 GB single DIMM capacity)

Podpora pro paměti typu:
ECC, non-ECC, XMP

Grafické výstupy:
(Intel HD Graphics)
1 x HDMI 2.0 port, maximální rozlišení 4096x2160@60 Hz
1 x DisplayPort 1.2, maximální rozlišení 4096x2304@60

Zvuková karta:
Realtek Audio CODEC
2/4/5.1/7.1-channel
Podpora S/PDIF Out

Síťová karta:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Intel Wi-Fi 6E AX211 a, b, g, n, ac, ax
Bluetooth 5.3

Rozšiřující sloty:

1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

RAID řadič:
RAID 0, RAID 1, RAID 5, and RAID 10

SATA:
6 x SATA 6Gb/s connectors

M.2:
4 x M.2 Socket 3 connectors

USB:

Interní:

1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers

Externí:

1 x USB Type-C port, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports

Interní porty:

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x Q-Flash Plus button
1 x Clear CMOS button
1 x reset jumper
1 x Clear CMOS jumper

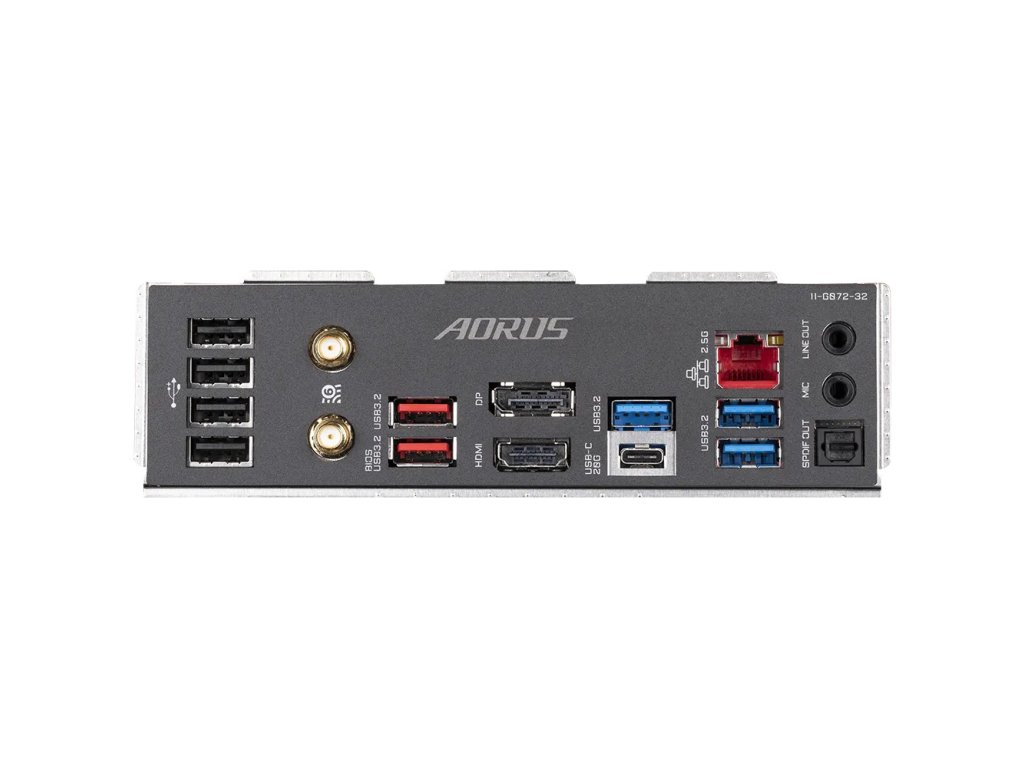

Externí porty:

1 x USB Type-C port, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x HDMI 2.0 port
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks

BIOS:
AMI UEFI BIOS, 1 x 256 Mbit flash

Stránka výrobce:
http://www.gigabyte.com/Motherboard/Z790-AORUS-ELITE-AX-rev-10#kf
