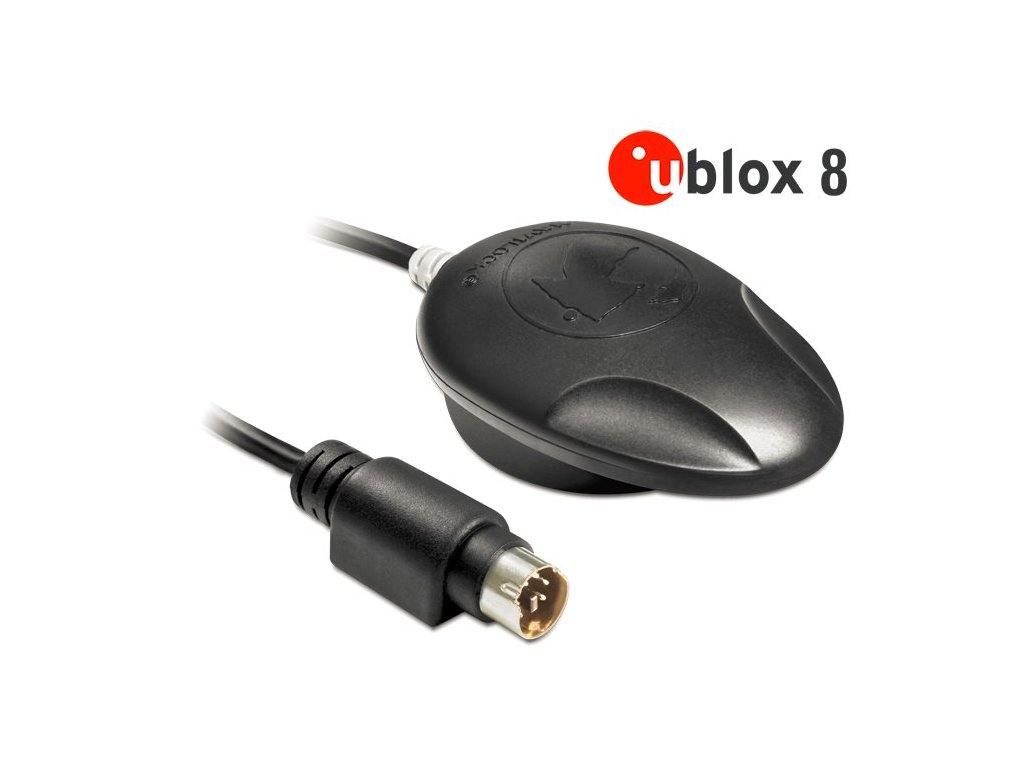

Navilock NL-8005P MD6 Serial PPS Multi GNSS Receiver u-blox 8 5 m

Detailní popis produktu

Kód: DL0215
P/N: 62526
EAN: 4043619625260

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)
The MD6 serial multi GNSS Receiver based on u-blox 8 chipset has a built-in antenna for high sensitivity. You can use this GNSS Receiver with a notebook and a suitable routing software for navigation. The MD6 universal connector enables the connection of optional USB or serial connecting cables.

Specifikace
• Connector:
MD6 Navilock plug (USB or serial cable are optional available)
• u-blox 8 UBX-M8030-KT chipset
• Frequency:
GPS: L1, 1575.4200 MHz
GLONASS: L1, 1602.5625 ~ 1615.5000 MHz
BEIDOU COMPASS: B1, 1561.0980 MHz
GALILEO E1, 1575.4200 MHz
QZSS L1, 1575.4200 MHz
• Accepts the signals of up to 72 satellites at the same time
• Supports AssistNow online/offline,
SBAS (WAAS, EGNOS, QZSS and MSAS)
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
• Auto Baud Rate up to 115200 bps
• PPS signal on pin 6
• Update rate:
single GNSS: 18 Hz (e.g. GPS solo)
multi GNSS: 10 Hz (e.g. GPS+GLONASS)
• Sensibility max. –167 dBm
• IPX6 protection class
• Magnetic, non-slip on the bottom
• LED-indicator for GPS-status
• Operating temperature: -20 °C ~ 60 °C
• Cold start in ca. 26 seconds
• Hot start in ca. 1 second
• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and
2 m CEP with SBAS
• Cable length: ca. 5 m
• Dimensions (LxWxH): ca. 65 x 45 x 22 mm

Systémové požadavky
• Windows Vista/7/8/8.1/10, Linux Kernel 2.6
• MD6 connection cable

Obsah balení
• MD6 seriell Empfänger
• Treiber CD
• Bedienungsanleitung auf CD ROM

Balení
• Box
