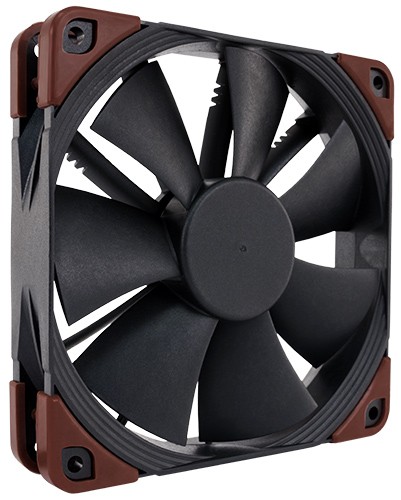

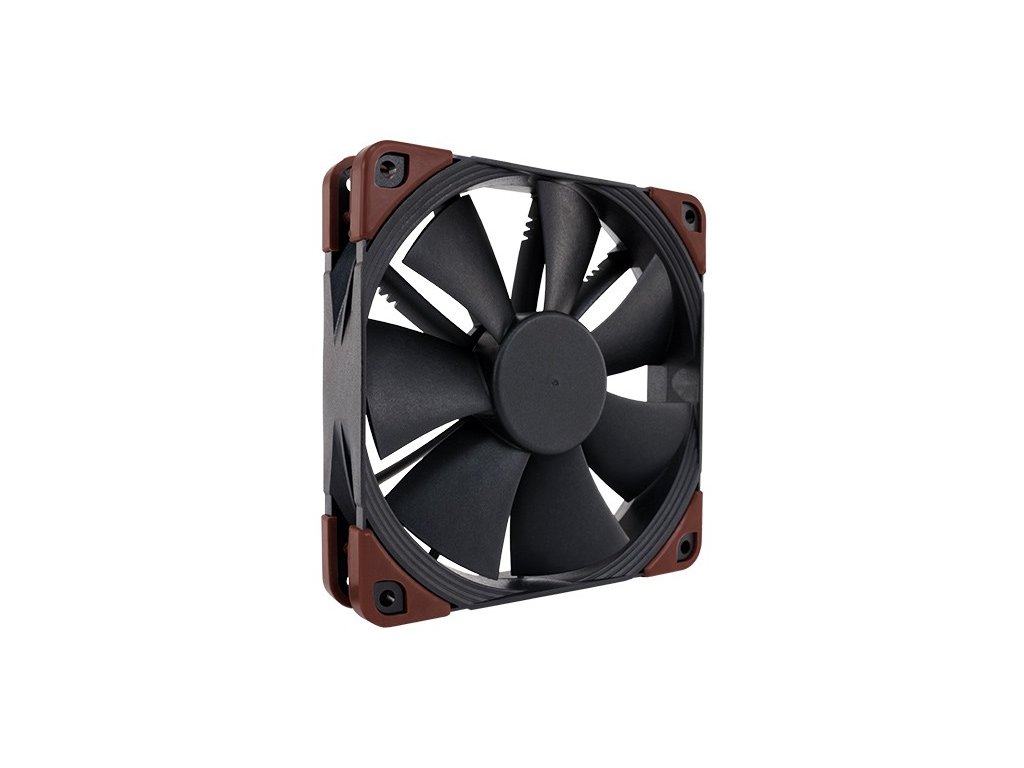

Noctua NF-F12 industrialPPC-2000, 120x120x25mm, 2000rpm

Detailní popis produktu

Kód: 628102
P/N: NF-F12 iPPC-2000
EAN: 4716123315384

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)
Popis produktu:

Conceived for industrial heavy duty applications that require enhanced cooling
performance and advanced ingress protection, the NF-F12 industrialPPC (Protected
Performance Cooling) is a ruggedised high-speed version of the award-winning retail
model. Thanks to the outstanding aerodynamic efficiency of the NF-F12 design and
the use of a novel three-phase motor, the industrialPPC version provides superior
airflow and pressure capacity while keeping noise levels and power consumption
moderate as against comparable high-speed fans. While its fibre-glass reinforced
polyamide construction and certified water and dust protection make the NF-F12
industrialPPC suitable for operation in challenging environments, the renowned SSO2
bearing technology guarantees an MTBF of over 150.000hrs. Topped off with Noctua’s
trusted reliability and 6 years manufacturer’s warranty, the NF-F12 industrialPPC is an
ideal choice for highly demanding applications that require superior flow rates and
ultimate dependability.

NF-F12 industrialPPC-2000
•industrialPPC version
•IP52 water and dust protection
•Three-phase motor
•Fibre-glass reinforced polyamide construction

Specifications:
Size: 120x120x25 mm
Mounting hole spacing: 105x105 mm
Connector: 3-Pin
Bearing: SSO2
Blade Geometry: Heptaperf™
Frame Technology: FocusedFlow™
Rotational Speed (+/- 10%): 2000 RPM
Airflow: 121,8 m3/h
Acoustical Noise: 29,7 dB(A)
Static Pressure: 3,94 mm H2O
Max. Input Power: 1,2 W
Max. Input Current: 0,1 A
Voltage: 12 V
MTTF: 150.000 h
Scope of Delivery:
Fan
4 Fan Screws
