Noctua NH-L9i low-profile CPU cooler, Intel LGA1200, LGA 115x (LGA1150, LGA1151, LGA1155, LGA1156) & AMD AM4

Detailní popis produktu

Kód: 628190
P/N: NH-L9i
EAN: 4716123314875

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)
Noctua NH-L9i low-profile CPU cooler, Intel LGA1200, LGA 115x (LGA1150, LGA1151, LGA1155, LGA1156) & AMD AM4 with NM-AM4-L9aL9i

Nový lowprofile chladič Noctua.

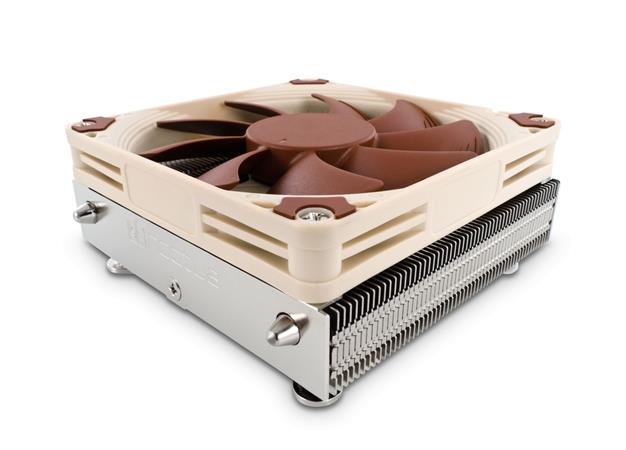

The NH-L9i is a premium quality quiet CPU cooler for Intel LGA115x based HTPCs and Small Form Factor systems. At a super-low profile of only 37mm, the NH-L9i is ideal for extremely slim cases and due to its 95x95mm footprint, it provides full compatibility with tall RAM modules and VGA cards on mini-ITX mainboards. The NH-L9i bundles a custom-designed, backplate-less SecuFirm2™ mounting system for LGA115x/1200 that offers extended compatibility with mini-ITX boards and makes installation easier than ever, all while maintaining the trusted SecuFirm2™ quality. Thanks to the highly optimised NF-A9x14 premium fan that supports fully automatic speed control via PWM, the NH-L9i runs remarkably quiet. Topped off with Noctua’s renowned NT-H1 thermal compound, the NH-L9i fuses everything users have come to expect from Noctua’s larger coolers into a super-compact package for slim HTPC systems.

Socket compatibility LGA1150, LGA1151, LGA1155, LGA1156 & AMD AM4 with NM-AM4-L9aL9i
Height (without fan): 23 mm
Width (without fan): 95 mm
Depth (without fan): 95 mm
Height (with fan): 37 mm
Width (with fan): 95 mm
Depth (with fan): 95 mm
Weight (without fan): 345 g
Weight (with fan): 420 g
Material: Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Fan compatibility:
- 92x92x14mm
- 92x92x25mm

Scope of Delivery:
- NF-A9x14 PWM premium fan
- Low-Noise Adaptor (L.N.A.)
- NT-H1 high-grade thermal compound
- SecuFirm2™ Mounting Kit
- Screws for 92x92x25mm fans
- Noctua Metal Case-Badge

Fan specifications:
Model: Noctua NF-A9x14 PWM
Bearing: SSO2
Max. Rotational Speed (+/- 10%): 2500 RPM
Max. Rotational Speed with L.N.A. (+/- 10%): 1800 RPM
Min. Rotational Speed (PWM): 300 RPM
Max. Airflow: 57,5 m^(3)/h
Max. Airflow with L.N.A.: 40,8 m^(3)/h
Max. Acoustical Noise: 23,6 dB(A)
Max. Acoustical Noise with L.N.A.: 14,8 dB(A)
Input Power: 2,52 W
Voltage Range: 12 V
MTBF: > 150.000 h

Kontrola kompatibility chladičů Noctua se základními deskami:
https://ncc.noctua.at/motherboards

Kompatibilita chladičů Noctua s procesory:
https://ncc.noctua.at/cpus

Přehled kompatibility CPU socketů:
https://ncc.noctua.at/socket-compatibility-overview

Termíny doplnění montážních sad LGA1700 do balení chladičů Noctua
https://noctua.at/en/productfaqs/productfaq/view/id/247/

Upgrady montáže CPU chladičů Noctua jsou poskytovány zdarma výrobcem s přímým zasláním na adresu koncového uživatele. Pro objednání a dodání montážních sad Noctua je vyžadován doklad o koupi (foto nebo sken faktury) chladiče procesoru Noctua a hardwarových komponent odpovídajících konkrétní sadě.
