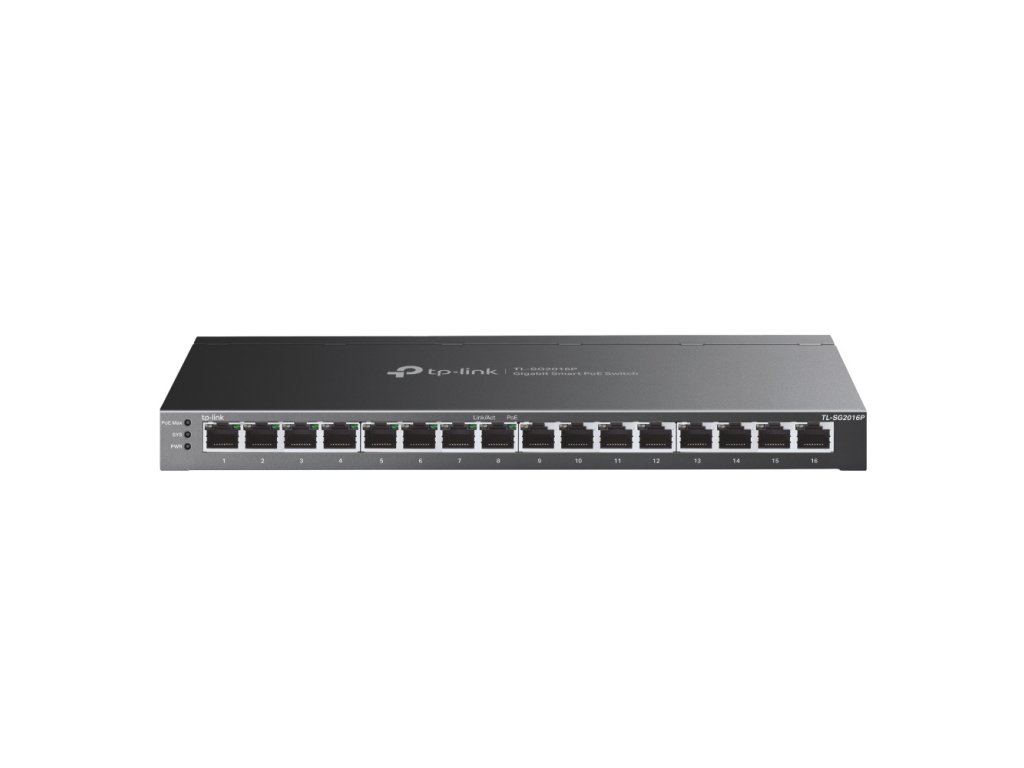

TP-Link SG2016P 16xGb(8xPoE+) 120W smart switch Omada SDN

Detailní popis produktu

Kód: 517221558
P/N: SG2016P
EAN: 4897098689493

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)

Model: TL-SG2016P

HARDWARE FEATURES Standards and Protocols:

IEEE 802.3i
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3af
IEEE 802.3at
IEEE 802.3x
IEEE 802.1d
IEEE 802.1s
IEEE 802.1w
IEEE 802.1q
IEEE 802.1p
IEEE 802.1x

Interface:

16× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 Support 802.3at/af PoE+)
Auto-Negotiation/Auto MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity

Fanless

Power Supply

External Power Adapter (Output: 53.5 VDC/ 2.43 A)

PoE Ports (RJ45)

Standard: 802.3af/at compliant
PoE Ports: 8 Ports
Power Supply: 120 W

Dimensions ( W x D x H )

11.3 x 4.4 x 1.0 in (286 x 111.7 x 25.4 mm)

Max Power Consumption

146.5 W (110 V/60 Hz) (with 120 W PD connected)

Max Heat Dissipation

499.98 BTU/hr (110 V/60 Hz) (with 120 W PD connected)

PERFORMANCE Bandwidth/Backplane:

16 Gbps

MAC Address Table:

8k

Packet Buffer Memory:

4.1 Mbit

Jumbo Frame:

9 KB

SOFTWARE FEATURES Quality of Service:

802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control - Port/Flow-based Rating Limit
Smoother Performance
Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control

L2 and L2+ Features:

DHCP Relay - DHCP VLAN Relay
DHCP L2 Relay
Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group
Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter/Protect, Root Protect
Loopback Detection
Flow Control - 802.3x Flow Control
Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED

L2 Multicast:

511 IPv4, IPv6 shared multicast groups
IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - Static Group Config
Multicast VLAN Registration (MVR)
Multicast Filtering
MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config
Limited IP Multicast (256 profiles and 16 entries per profile)

IPv6 Support:

IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP

VLAN:

VLAN Group - Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN: 12 Entries
Protocol VLAN
GVRP
Voice VLAN

Access Control List:

Support up to 230 entries
Time-Range - Time Slice - Week Time-Range - Absolute Time-Range - Holiday
Time-based ACL
MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type
IP ACL - Source IP - Destination IP - IP Protocol - TCP Flag - TCP/UDP Source Port - TCP/UDP Destination Port - DSCP/IP TOS
IPv6 ACL
Combined ACL
Rule Operation - Permit/Deny
Policy Action - Mirror - Rate Limit - Redirect - QoS Remark
ACL Rules Binding - Port Binding - VLAN Binding
Actions for flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark

Security:

AAA
802.1X - Port-based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability
IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection
IP Source Guard - 253 Entries - Source IP+Source MAC
IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC
DoS Defend
Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC-based access control

Advanced Features:

Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule

MIBs:

MIB II (RFC1213)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIBs
RMON MIB(RFC1757, rmon 1,2,3,9)

MANAGEMENT Omada App:
Yes, through
Omada Cloud-Based Controller
OC300
OC200
Omada Software Controller

Centralized Management:

Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller

Cloud Access:
Yes, through
Omada Cloud-Based Controller
OC300
OC200
Omada Software Controller

Zero-Touch Provisioning:
Yes. Requiring the use of Omada Cloud-Based Controller

Management Features:

Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log

OTHERS Certification:
CE, FCC, RoHS

Package Contents:

TL-SG2016P
Power Adapter
Installation Guide
Rubber Feet

System Requirements:
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Environment:

Operating Temperature: 0–40 ? (32–104 ?),
Storage Temperature: -40–70 ? (-40–158 ?)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
