Zyxel WAC500H, Single pack exclude Power Adaptor, 1 year NCC Pro Pack license bundled,EU and UK, Unified AP,ROHS

Detailní popis produktu

Kód: 447416
P/N: WAC500H-EU0101F
EAN: 4718937615209

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)

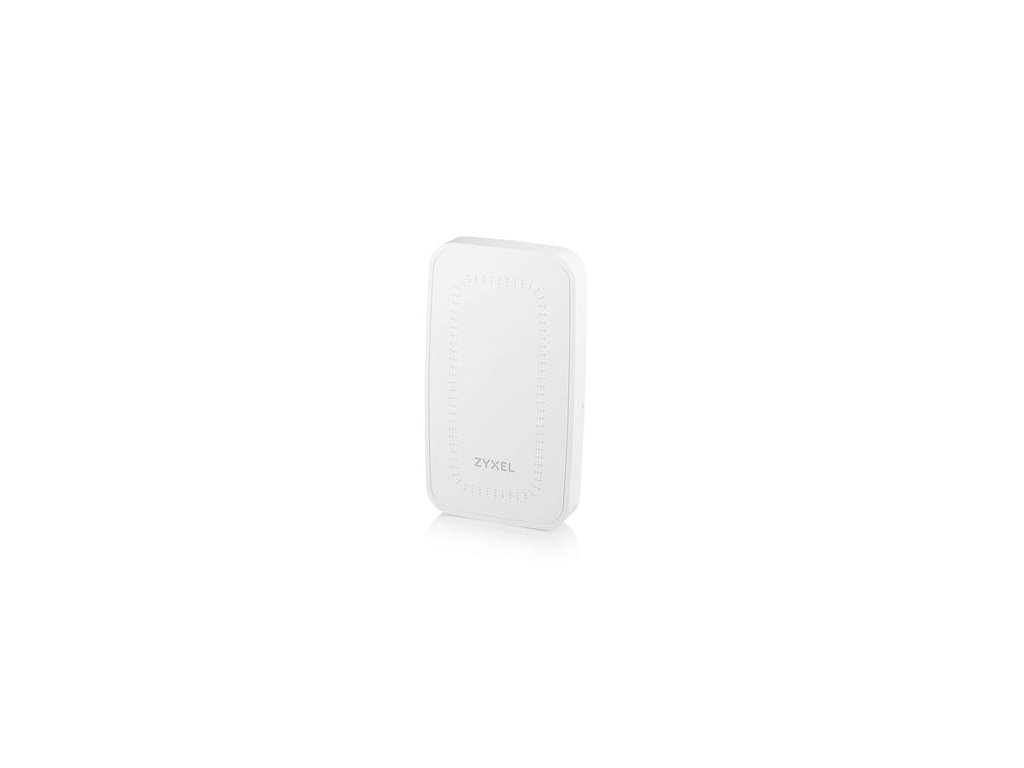

WAC500H, Single pack exclude Power Adaptor, 1 year NCC Pro Pack license bundled,EU and UK, Unified AP,ROHS

Get not only wireless but wired and PoE connectivity, too
The Zyxel WAC500H is designed for per-room deployment scenarios. It turns an Ethernet wall plate into not only a wireless access point to provide WiFi service but also a Gigabit switch with PoE, powering a VoIP phone for last-mile network services.

Featuring NebulaFlexTM Pro, the WAC500H can be managed through a local web management interface, hardware controller, or with a one-year free license on the Nebula cloud management platform.

Versatile mounting options
The versatile yet low-profile mounting design allows the access point to blend seamlessly and tastefully into any decor while mounted directly on an outlet box, in an out-of-the-way location, or even simply on a desktop.

More than WiFi
As well as providing superb WiFi, the WAC500H supports 24/7 wired and PoE connectivity for mobile Point-of-sale (POS) applications for restaurants, bars, and cafés.

Work from home like a Pro!
Supporting the 802.11ac Wave 2 standards, the WAC500H provides fast and reliable connectivity with full support of video conferencing, secure data transfer and seamless connection of multiple devices.

The “RF First” and MU-MIMO technology of WAC500H ensure the high-speed connectivity. And, the two downlink Gigabit Ethernet ports allow an easy connection to a wired printer or powering up a VoIP phone effortlessly.

The WAC500H features NebulaFlex Pro technology, which allows the AP to be run in three different modes - standalone, controller, or Nebula Cloud Networking platform based on the need of each user. For a straightforward network it can be run in standalone mode, for a complex one that requires advanced features it can be run with an on-premises controller. And, Nebula cloud networking is designed to satisfy all situations with great scalability, feature-rich, and central management.

Wireless
Standard IEEE802.11 ac/n/g/b/a
MIMO MU-MIMO
Wireless speed 2.4 GHz:
300Mbps
5 GHz:
866Mbps
Frequency band 2.4 GHz
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz
5 GHz
USA (FCC): 5.15 to 5.25 GHz; 5.725 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth 20-, 40- and 80-MHz
Conducted typical transmit output power US (2.4GHz/5GHz)
23/26dBm
EU (2.4GHz/5GHz)
19/26dBm
RF Design
Antenna type 2x2 MIMO Embedded Antenna
Antenna gain 2.4GHz
3 dBi
5GHz
4 dBi
Minimum receive sensitivity Up to -99 dBm
WLAN feature
Band Steering Yes
WDS / Mesh Yes
Fast roaming Pre-authentication, PMK caching and 802.11r/k/v
DCS Yes
Load balancing Yes
Security
Encryption
WEP
WPA
WPA2-PSK
WPA3
Authentication
WPA
WPA2-Enterprise
EAP
IEEE 802.1X
RADIUS authentication
Access management
L2-isolation
MAC filtering
Networking
IPv6 Yes
VLANs Yes
WMM Yes
U-APSD Yes
DiffServ marking Yes
Management
Operating mode
Cloud managed
standalone
ZON Utility
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations
IP configuration
IP renew
Device reboot
Device locating
Web GUI access
Firmware upgrade
Password configuration
Zyxel Wireless Optimizer
WiFi AP planning
WiFi coverage detection
Wireless health management
Web UI/ CLI Yes
SNMP Yes
Physical Specifications
Item Dimensions (WxDxH)(mm/in.)
173 x 97 x 29 / 6.81 x 3.82 x 1.14
Weight (g/lb.)
223/0.49
Packing Dimensions (WxDxH)(mm/in.)
195 x 120 x 53 / 7.68 x 4.72 x 2.09
Weight (g/lb.)
444/0.98
Included accessories Multi-purpose mounting bracket with screws
MTBF(hr) 542,017
Physical Interfaces
Ethernet port
1x 10/100/1000M uplink
2x 10/100/1000M downlink(including on PoE PSE)
Power
Input: AC 100 - 240V - 50/60 Hz 0.3A; Output: DC +12V 1A
PoE (802.3at/af): power draw 18 W
Environmental Specifications
Operating Temperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 90% (non-condensing)
Storage Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 90% (non-condensing)
Certifications
Radio
FCC Part 15C
FCC Part 15E
ETSI EN 300 328
EN 301 893
LP0002
EN 60601-1-2
EMC
FCC Part 15B
EN 301 489-1
EN 301 489-17
EN55022
EN55024
EN61000-3-2/-3
BSMI CNS13438
Safety
EN 60950-1
IEC 60950-1
BSMI CNS14336-1
